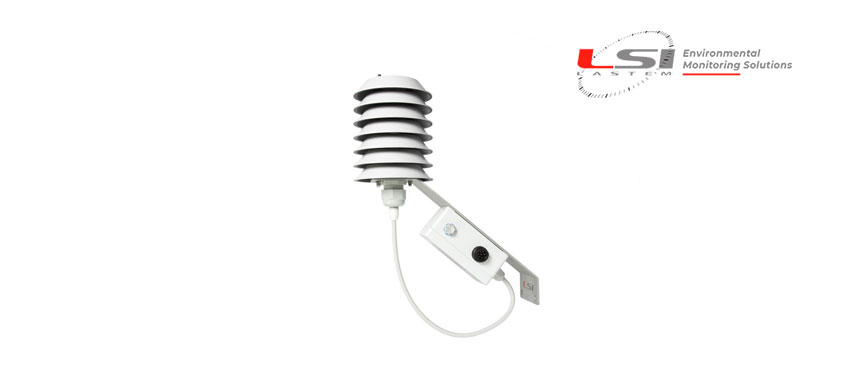

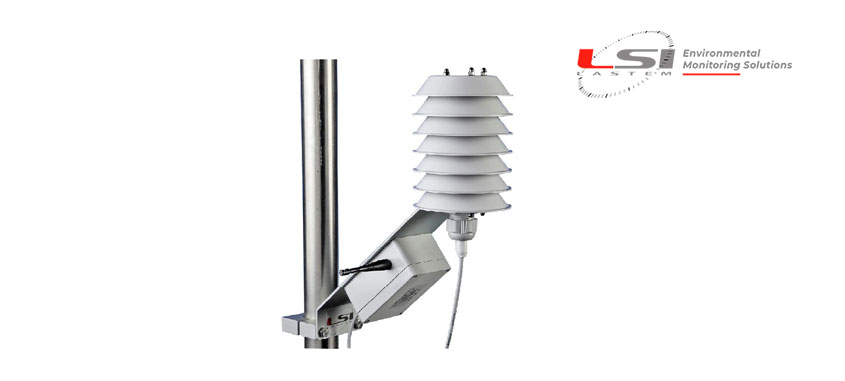

Thermohygrometers for any type of environmental application
Wide range of precise and reliable sensors designed for continuous meteorological measurements even in severe climatic conditions and in the presence of strong thermal and hygrometric variations. Temperature measurement principle RTD Pt100 1/3 DIN B (Class AA EN60751) and capacitive humidity.
• Design and performances addressed to meteorological applications
• Fast return after saturation
• High protection from salty and polluted air
• High efficency radiant screen
• Optional forced ventilation radiant screen
• SO17025 traceability
| Codice | DMA672.1 | DMA672.5 | DMA672.3 |
| Output | RH%:0…1 Vdc. °C:Pt100 DIN-IEC 751 table (EN 60751) UART (A-Log) |
RH%:0…1 Vdc. °C:Pt100 DIN-IEC 751 table (EN 60751) |
2X0…1 V |
| Power supply | 5…24 Vdc | 5…24 Vdc or 5…16 Vac | |
| Power consumption | 2 mA | <5 mA | |
| Cable and connector | L=3 m free wires (8 wires) |
L=3 m + Male connector for DWA9xx extension cables |
L=5 m free wires (8 wires), detachable |
| Data logger compatibility |
M-Log (ELO008) A/E-Log (all models) |
Using DWA9nn extensión cable: M-Log (ELO008) E-Log A-Log (using ALIEM module) |
M-Log (008) E-Log A-Log (using ALIEM module) |
