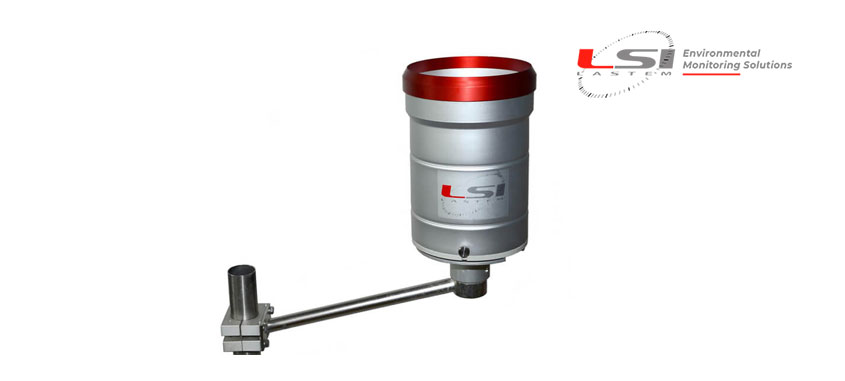

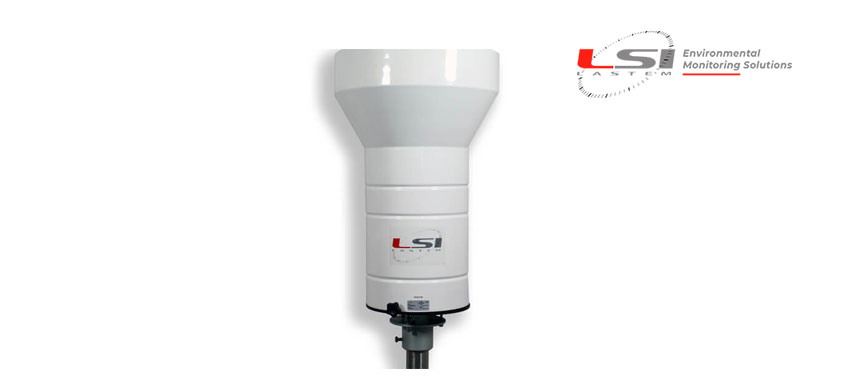

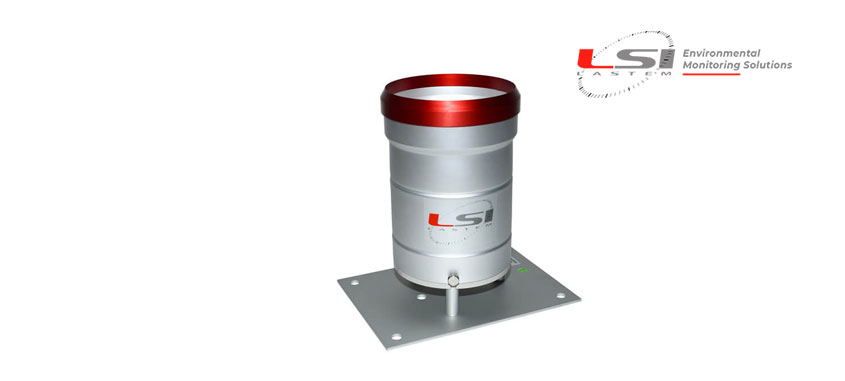

Wide range of sensors to measure the quantity and intensity of precipitation. Our rain gauges are composed of a precipitation collection funnel that conveys the water into a double-tank receiver connected to a magnet. The magnet activates a read relay which generates a pulse that can be counted from an external counter.
Models are available equipped with a siphon positioned at the end of the collection funnel to regulate the flow of water in the event of heavy rainfall. This solution is ideal when the goal is to measure the total rainfall over a long period, not to measure the intensity.
Class A models are available which, following calibration in an internal laboratory, comply with the European standard UNI EN 17277: 2020, which defines the accuracy for measuring intensity and how to calibrate the instrument and correct the data.
• Design made in compliance to WMO Class A (UNI11452:2012) accuracy over intensity (see PN);
• Syphone to adjust the water flow (see PN);
• Allumium made for rugged installations;
• Heated versions availability (see PN);
• Inpulse output and external optional devices for 4-20 mA or Modbus outputs (XLA003.1/003.2).
| PN | DQA230 | DQA231 | DQA230.1 | DQA231.1 | DQA235 | DQA236 | DQA230A.3 |
 |
 |
 |
|||||
| Class A (UNI EN 17277:2020) |
YES | YES | NO | NO | YES | YES | NO |
| Calibration certificate |
Included for Class A | On request | On request | Included for Class A | On request | ||
| Diameter | 203 mm | 203 mm | 203 mm | 203 mm | 360 mm | 360 mm | 203 mm |
| Collector area | 323 cmq | 323 cmq | 323 cmq | 323 cmq | 1000 cmq | 1000 cmq | 323 cmq |
| Weight | 1.3 Kg | 1.4 Kg | 1.4 Kg | 1.5 Kg | 3 Kg | 3.2 Kg | 5.5 Kg |
| Heater | NO | YES 24 Vac (Max 60 W) |
NO | YES 24 Vac (Max 60 W) |
NO | YES 24 Vac (Max 50 W) |
NO |
| Heater operative temperature |
– | >-20…4°C | – | >-20…4°C | – | >-40…4°C | – |
| Siphone | NO | NO | YES | YES | NO | NO | SI |
| Accuracy | 0…500 mm/hr intensity 3% UNI EN 17277:2020 (using correction formula) |
Accumulate rainfall amount 0…20 mm/hr: ± 0.2 mm 20…240 mm/hr: 1% >240 mm/hr: 2% |
0…300 mm/hr intensity 3% UNI EN 17277:2020 (using correction formula) |
Accumulate rainfall 0…190 mm/hr: 3% Up to 347 mm/hr: 4% |
|||
| Max range | 500 mm/h | 300 mm/h | 200 mm/h | ||||
| Protections | Capacitor debounce circuit | Polarity reverse and transient, Capacitor debounce circuit |
Reed contact individual protection | ||||
| Operative temperature |
0…80°C | -20…80°C | 0…80°C | -20…80°C | 0…80°C | -40…80°C | 0…80°C |
| Cable | Not included (DWA5xxA) | Included. L=10 m | |||||
| Material | Housing: UV resistance aluminum Tipping spoon: teflonate plastic Base: plastic |
Housing: aluminum Tipping spoon: stain-less steel Base: PED |
Collector: copper Tip: stainless steel Base: aluminium |
||||
