The raw water sample is oxidized at 1,200 °C and the CO2 produced is deteced and quantitatively determined. High Temperature Method at 1,200 °C

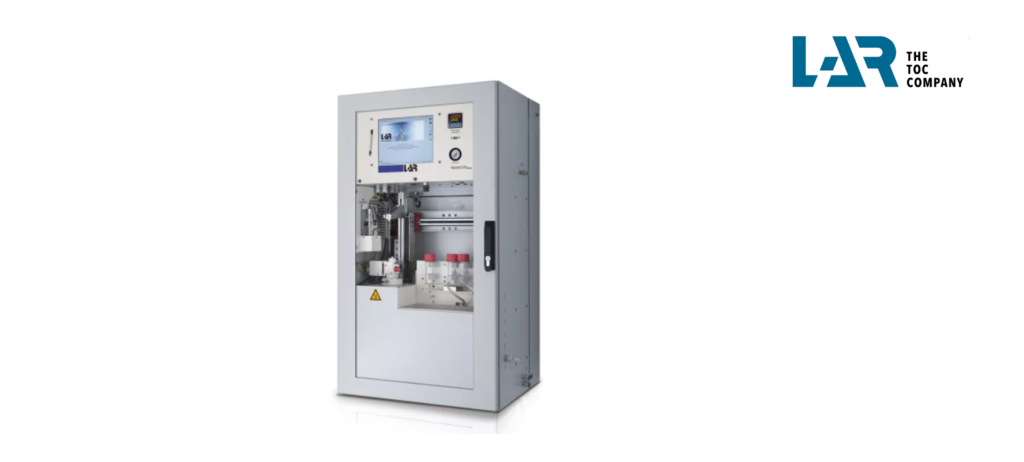

LAR’s COD analyzer QuickCODultra™ is the most reliable measurement system for the roughest wastewater applications. Due to an unrivaled injection and oxidation technique, the QuickCODultra easily handles sticky, fatty, salty, and high-particle samples unlike other COD analyzers without the need of any hazardous chemicals.
Features and Benetits
• Measurement range: 10 – 150 mg/l, 100 – 2,000 mg/l, 500 – 5,000 mg/l, 1,000 – 8,000 mg/l, 20,000 – 250,000 mg/l, further options available
• Response time: 1 – 2 minutes
• Measures the real oxygen demand
• Highest combustion temperature (1,200°C) available on the market
• Catalyst-free technique
• Reliable measurement without reagents
• No filtration necessary
• No memory effects
• Very low maintenance and operational costs
Applications
LAR’s total organic carbon analyzer is suitable for a variety of applications and types of water, even with frequently changing sample matrixes.
• Water Influent
• Water Effluent
• Discharge Control
• Industrial Waste Water
• De-Icing Water
• Process Water
• High Salt Concentrations
• Oil-in-Water
| Measurement Technique and Sample Preparation | |
| Sensitivity | Depending on the detector/measuring range used for 0.1-100ppm –> 0.1ppm at 600µl injection volume |
| Accuracy | Max. 2% of FSR |
| Repeatability | Max. 2% of FSR |
| Cycle Time | TConly / TNb / COD_o: 1-2 min. TOCdiff: 4-5 min. TOCdirect (NPOC): 4-6 min. |
| Response Time | 1-2 min. |
| Sample Preparation | • Flow Sampler – Maintenance-free particle seperator • Optional homogeniser for continuous homogenisation of samples |
| Particle Size | If solid particles < 800µm If soft particles up to 2mm |
| Temperature and Humidity | |
| Ambient Air Humidity Max. 80% (non condensing) |
Yes |
