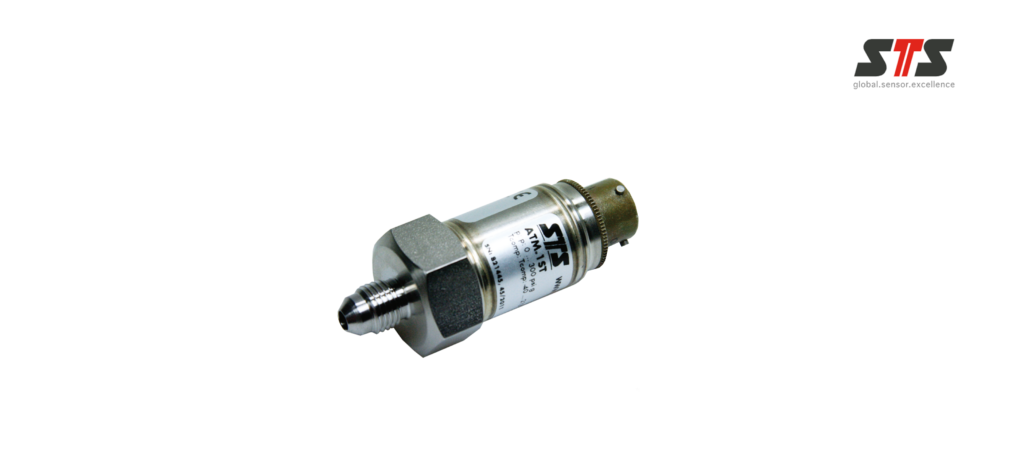

The ATM.1ST is an electronically compensated pressure transmitter providing a 2-wire, 4-20 mA analog output. The transmitter offers accuracies of ≤ 0.05% FS or ≤ 0.1% FS including linearity, hysteresis, repeatability, zero and span setting errors. Modular construction and more than 30 year proven history of STS piezoresistive sensor technology provide manufacturing flexibility and offers fast delivery for all pressure ranges.
Examples of applications include:
• Test and measurement
• Industrial process monitoring and control
• Test benches and calibration
• Automotive and engine test
Features
• Total Error Band: typical ≤ 0.3% FS
• Compensated temperature: -40 to 255°F
• Full scale ranges from 1 to 15,000 psi
• Gauge, absolute or sealed gauge
• Accuracies of ≤ 0.05 or 0.1% available
Includes linearity, hysteresis, repeatability AND zero and span settings
• 4 to 20 mA output
| Measurement | |
| Pressure ranges | Any range from 1 to 15,000 psi FS available, in any engineering units such as psi, Pa, in H20, bar. Absolute from 0 – 1 to 0 – 360 psia FS Gauge from 0 – 1 to 0 – 360 psig FS Sealed from 0 – 150 to 0 – 15,000 psisg FS Consult factory for any other pressure ranges |
| Proof pressure | FS up to 15 psi: 45 psi FS > 15 psi up to 4,000 psi: 3 x FS FS > 4000 psi up to 9000 psi: 12,000 psi FS > 9000: 22,000 psi Consult factory for higher proof pressure |
| Burst pressure | FS up to 350 psi: > 3,000 psi FS up to 9000 psi: > 12,000 psi FS > 9000 psi: > 22,000 psi Consult factory for higher burst pressure |
| Operating temperature range | -40 to 255°F (Fig. 1, standard) -40 to 300°F (Fig. 2) |
| Compensated temperature range | 32 to 160°F (standard) -15 to 212°F (option) -40 to 212°F (option) -40 to 255°F (with option active compensation) |
| Storage temperature range | -40 to 255°F |
| Performance | |
| Total Error Band (TEB) | typ. ±0.8% total for 32 to 160°F, ≤ 7.25 psi typ. ±1.3% total for -15 to 212°F, ≤ 7.25 psi typ. ±0.3% total for 32 to 160°F, > 7.25 psi typ. ±0.75% total for -15 to 185°F, > 7.25 psi |
| TEB with option active compensation | typ. ±0.5% total for 32 to 160°F, ≤ 7.25 psi typ. ±1.5% total for -15 to 212°F, ≤ 7.25 psi typ. ±0.2% total for 32 to 160°F, > 7.25 psi typ. ±0.5% total for -15 to 185°F, > 7.25 psi |
| Accuracy | Combined linearity, hysteresis, repeatability, Zero and Span set: ≤±0.25% FS (standard) ≤±0.10% FS (option) ≤±0.05% FS (with option active compensation) |
| Long term stability | <0.1% FS/yr for pressure ranges > 30 psi FS Prorated for ranges below 30 psi FS Under standard conditions |
| Supply voltage | 9 – 33 VDC Influence of supply voltage < 0.05% FS |
| Max. load resistance | RL = (Vsupply – 9V)/0.02A Influence of load resistance < 0.05% FS |
| Output signal | 4 – 20 mA, 2-wires |
| Response time | <1ms (10 to 90%FS) |
| Insulation resistance | > 50 megohms @ 500 VDC (@ 68°F) |
| Construction | |
| Pressure media compatability | Stainless steel 316L, Viton seals Other seal materials available Elastomerfree version available up to 10,000 psi |
| Pressure connection | 7/16 – 20 UNF male Other connections available |
| Electrical connection | DIN 43650 or Micro DIN (Fig. 3) 6-pin bayonet per MIL-C-26482 (10-6) (Fig. 4) Polyurethane cable (Fig. 5) Other types available |
| Weight | 4.5 oz approximate (not including cable) |
| Vibration | 10 g, 4 to 2000 Hz |
| Mechanical shock | 100 g / 6 ms |
