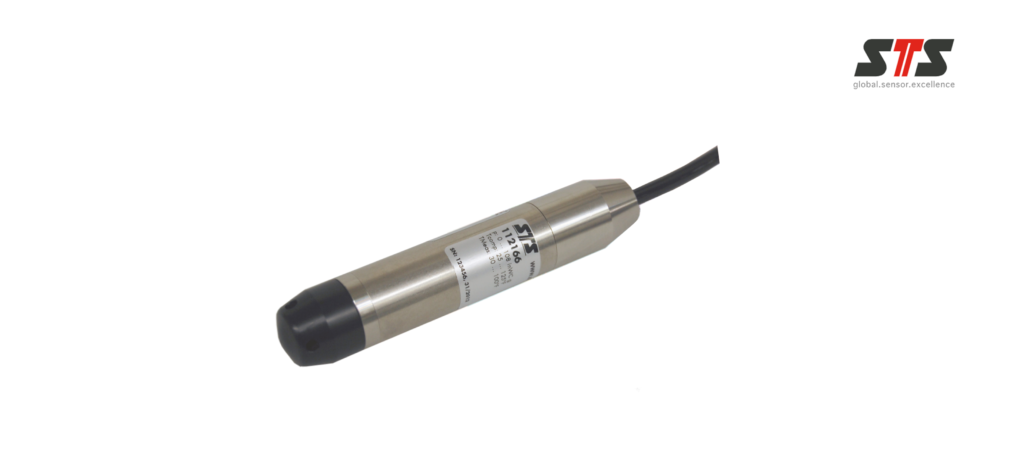

The ATM.ST/N/T series is part of a comprehensive range of transmitters specifically designed for the long term monitoring of ground water, wastewater and tank level measurement. It provides a dual 4-20mA, 3 or 4 wire configuration for both level and temperature. Features such as Kevlar strengthened cable, titanium, ballast weights, dataloggers, etc. broaden the installation opportunities.
Examples of applications include:
• Deep wells, lakes, dams and reservoirs
• Bore holes
• Surface water, irrigation canals and rivers
• Wastewater and sewage treatment plants
• Tank level measurement
Features
• Fully submersible, 1″ diameter
• Titanium or 316L SS construction
• Accuracy: ≤ ± 0.1% FS or ≤ ± 0.25% FS
Includes linearity, hysteresis, repeatability AND zero and span settings
• Ranges 20″ WC to 360 psi
• Temperature Accuracy: ± 0.5°F typical
• Temperature Range 25 to 175°F
• Dual 4-20mA, 3 or 4 wire configurationlants
| Pressure Measurement | |
| Pressure ranges | Any range from 20“WC to 360 psi FS available, in any engineering units such as psi, Pa, inches H20, bar Absolute or gauge types available |
| Proof pressure | FS up to 15 psi: 45 psi FS > 15 psi up to 360 psi: 3 x FS (max. 360 psi) Consult factory for higher proof pressure |
| Operating temperature range | 25 to 175°F (process media) |
| Compensated temperature range | 25 to 175°F |
| Accuracy for pressure | ≤ ±0.1% FS ≤ ±0.25% FS Combined linearity, hysteresis, repeatability, zero and span set |
| Total Error Band (TEB) | typ. ±0.8% total for 25 to 125°F, ≤ 7.25 psi typ. ±1.3% total for 25 to 175°F, ≤ 7.25 psi typ. ±0.3% total for 25 to 125°F, > 7.25 psi typ. ±0.75% total for 25 to 175°F, > 7.25 psi |
| TEB includes linearity, hysteresis, repeatability, zero and span settings and temperature effects at max. signal span (16mA) | |
| Response time | <1ms (10 to 90%FS) |
| Long term stability | 0.1% FS/yr for pressure ranges > 30 psi Prorated for ranges below 30 psi Under standard conditions |
Economical transmitters of the L Series are primarily optimized for ambient room conditions and are very well suited to help control energy costs in HVAC and building automation applications.
The ATM.1ST is an electronically compensated pressure transmitter providing a 2-wire, 4-20mA analog output. The transmitter offers accuracies of ≤ 0.05%FS or ≤ 0.1%FS including linearity, hysteresis, repeatability, zero and span setting errors.
Economical transmitters of the L Series are primarily optimized for ambient room conditions and are very well suited to help control energy costs in HVAC and building automation applications.
Pressure measuring range: 50 mbar … 1000 bar, Accuracy: ≤ ± 0.10 / 0.05 % FS, Operating temperature: -40 … 125°C, rocess temperature: -40 … 150°C
