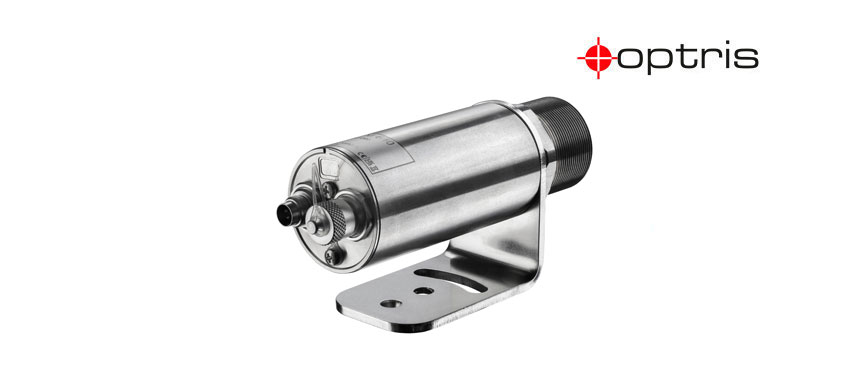

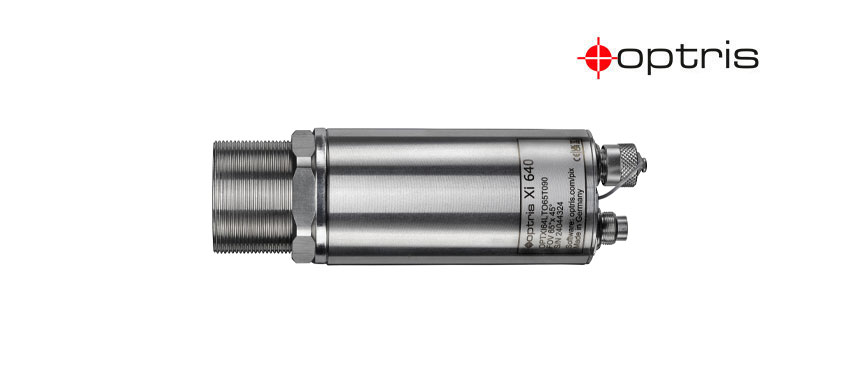

The Xi 640 is an advanced USB high-resolution IR camera. It is often used stationary and fixed installed settings to monitor production and manufacturing processes.
The Optris Xi 640 is an industrial USB infrared camera that offers innovation and affordability in non-contact thermal imaging. With high-resolution thermal imaging (640 x 480 pixels) and a temperature range from -20°C to 900 °C, it is designed to operate within the long-wavelength infrared range (LT: 8 – 14 µm). This forward-looking camera is engineered and manufactored in Germany to capture measurement data for precise surface temperature analysis in industrial settings. The Xi 640 thermal camera embodies compactness, waterproof, and rugged design, ideal for demanding industrial environments.
Features:
Scope of Supply:
| DETECTOR | Optical resolution | 640×480 pixels | |||
| Pixel pitch | 12 µm | ||||
| Detector | Uncooled bolometer | ||||
| Spectral range | LT: 8 – 14 µm | ||||
| Optical Filter | No | ||||
| Frame rate | 32 Hz | ||||
| OPTICAL | Field of View | 22°x17° | 36°x26° | 65°x45 | |
| Focal length [mm] | 20 | 13 | 8 | ||
| F Number | 1.1 | 0.9 | 0.9 | ||
| Optical Resolution | 550:1 | 350:1 | 210:1 | ||
| Minmum Distance to target | 350 mm | 350 mm | 250 mm | ||
| Interchangeable optics | No | ||||
| MEASUREMENT | Object Measurement Range | –20 … 100 °C; 0 … 250 °C; (20) 150 … 900 °C*1) | |||
| Accuracy | ±2 °C or ±2 %, whichever is greater | ||||
| Thermal Sensivitiy (NETD) | 80mK | ||||
| Smallest detectable Spot Size IFOV: 1 pixel | 0.3mm | 0.5mm | 0.7mm | ||
| Smallest measureable Spot Size MFOV | 1.2mm | 2.0mm | 2.8mm | ||
| Measurement Field of View (MFOV) | 4×4 pixels | ||||
| Warm-up time | 10 min | ||||
| Emissivity /Transmissivity/ Reflectivity | adjustable: 0.100…1.100 | ||||
| INTERFACES | Interface | USB optional: USB GigE (PoE) interface |
|||
| Supported Protocols | USB 2.0 | ||||
| Compatible Software | PIXConnect, EasyComm, ConnectSDK, EasyAPI, DirectSDK | ||||
| ANALOG INPUT/OUTPUT | Direct output/input | 1x analog output (0/4-20 mA) 1x input (analog or digital); optically isolated |
|||
| Optional Industrial Process interface (PIF) | 2x 0 – 10 V input, digital input (max. 24 V), 3x 0/4 – 20 mA outputs, 3x relay (0 – 30 V/ 400 mA), fail-safe relay |
||||
| Cable length | USB: 1 m (standard), 3m , 5 m , 10 m | ||||
| IMAGE PROCESSING | Configuration | via PIXConnect | |||
| Operation | Computer-enabled | ||||
| Capabilities |
Measure Areas of Interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, Temperature-Time Diagrams, Temperature Profiles, Recording & Playing, Triggering
|
||||
| GENERAL | Size | Ø 36 mm x 100 mm, thread: M30x1 | |||
| Housing Material | Stainless steel | ||||
| Weight | 216 – 220 g, depending on lens (without mounting bracket) | ||||
| Tripod | 1/4-20 UNC | ||||
| Focus | Motorized | ||||
| Country of Origin | Germany | ||||
| ENVIRONMENTAL & CERTIFICATIONS | Operating Temperature Range | 0…50°C | |||
| Storage Temperature Range | -40…70 °C | ||||
| Relative humidity | 10 – 95 %, non-condensing | ||||
| Protection Class | IP67, NEMA-4 | ||||
| EMC | 2014/30/EU | ||||
| Shock | IEC 60068-2-27 (25 G and 50 G) | ||||
| Vibration | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) |
||||
| Standards | CE, UKCA, RoHS | ||||
| POWER | Power Supply | USB | |||
| Power Consumption | max. 2.5 W | ||||
| Part number |
OPTXI44LTO22T090
|
OPTXI44LTO36T090 |
OPTXI44LTO65T090
|
||
