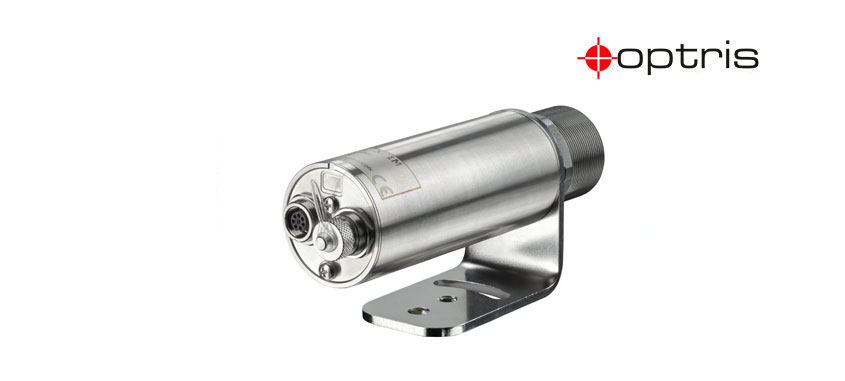

The Optris Xi 1M, a short-wavelength infrared camera, excels in non-contact thermal imaging of challenging objects. It accurately measures the surface temperatures of hot metals, steel, ceramics, and semiconductors. With an autonomous thermal measurement capability and motorized focus, it offers reliability and ease in industrial settings without additional hardware. Featuring Ethernet, USB interfaces, and analog and digital process interfaces, it enables seamless integration into control systems and machinery.
Features:
- Industrial Ethernet short-wavelength infrared camera
- Wide measurement range from 450 °C to 1800 °C without sub-ranges
- Small-sized, ruggedized with motorized focus
- Highly dynamic CMOS detector with 396 x 300 pixels resolution
- Autonomous operation with auto hot spot finder and direct analog or alarm output and various fieldbus communication options
Scope of Supply:
- Process imager Xi 1M

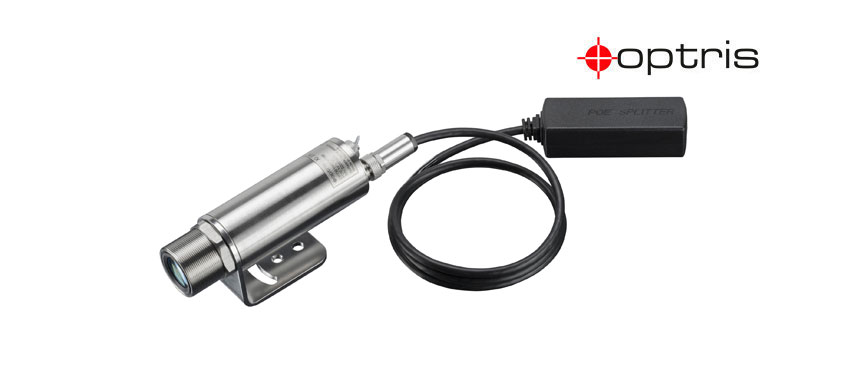

- Ethernet / PoE cable (1 m)
- USB cable (1m)
- Cable for output/input (1 m) incl. terminal block
- Mounting bracket with nut
- Software package optris PIX Connect
- Quick Start Guide
| DETECTOR |
Optical resolution |
Ethernet: 396×300 pixels; USB: 132×100 pixels; autonomous: 132×100 pixels |
|
Pixel pitch |
15 µm |
|
Detector |
CMOS |
|
Spectral range |
HT: 0,85 – 1,1 µm |
|
Optical Filter |
No |
|
Frame rate |
20 Hz |
| OPTICAL |
Field of View |
7°x5° (396×300 pixels) |
14°x10° (396×300 pixels) |
28°x21° (396×300 pixels) |
7°x5° CF (396×300 pixels) |
7°x5° (132×100 pixels) |
14°x10° (132×100 pixels) |
28°x21° (132×100 pixels) |
7°x5° CF (132×100 pixels) |
|
Focal length [mm] |
50 |
25 |
12 |
50 |
50 |
25 |
12 |
50 |
|
F Number |
2.8 |
1.8 |
2 |
2.8 |
2.8 |
1.8 |
2 |
2.8 |
|
Optical Resolution |
830:1 |
420:1 |
200:1 |
830:1 |
830:1 |
420:1 |
200:1 |
830:1 |
|
Minmum Distance to target |
800 mm |
300 mm |
300 mm |
500 mm |
800 mm |
300 mm |
300 mm |
500 mm |
|
Interchangeable optics |
No |
| MEASUREMENT |
Object Measurement Range |
450 °C1) … 1800 °C |
|
Accuracy |
For object temperature < 1400 °C: ±1 % of reading
For object temperature < 1600 °C: ±2 % of reading |
|
Thermal Sensivitiy (NETD) |
2 K ( 900 °C) / 4 K ( 1400 °C) |
|
Minimal Instantaneous Field of View (IFOV) |
0.3mm |
0.5mm |
0.7mm |
0.1mm |
0.9mm |
1.5mm |
2.1mm |
0.3mm |
|
Smallest measureable Spot Size MFOV |
1.2mm |
2.5mm |
2.8mm |
0.4mm |
3.6mm |
6.0mm |
8.4mm |
1.2mm |
|
Measurement Field of View (MFOV) |
4×4 pixels |
|
Warm-up time |
10 min |
|
Emissivity /Transmissivity/ Reflectivity |
adjustable: 0.100…1.100 |
| INTERFACES |
Interface |
USB 2.0, Ethernet (100 Mbit/s) |
|
Supported Protocols |
USB, Ethernet (Static), RS485, Serial Communication
Optional: EthernetIP, ProfiNet, Modbus TCP |
|
Compatible Software |
PIXConnect, EasyComm, ConnectSDK, EasyAPI, DirectSDK |
| ANALOG INPUT/OUTPUT |
Direct output/input |
1x analog output (0/4-20 mA), 1x input (analog or digital); optically isolated |
|
Optional Industrial Process interface (PIF) |
3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay);
stackable up to 3 PIFs; optically isolated |
|
Cable length |
Ethernet / RS485: 20 m (extendable up to 100 m)
USB: 1 m (standard), 3 m, 5 m |
| IMAGE PROCESSING |
Configuration |
via PIXConnect |
|
Operation |
Autonomous Standalone and/or computer-enabled |
|
Capabilities |
Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, |
| GENERAL |
Size |
Ø 36 mm x 112-127 mm (depending on lens), thread: M30x1 |
|
Housing Material |
Stainless steel |
|
Weight |
270 g (without mounting bracket) |
|
Tripod |
1/4-20 UNC |
|
Focus |
Motorized |
|
Country of Origin |
Germany |
| ENVIRONMENTAL & CERTIFICATIONS |
Operating Temperature Range |
0…50°C |
|
Storage Temperature Range |
-40…70 °C |
|
Relative humidity |
10 – 95 %, non-condensing |
|
Protection Class |
IP67, NEMA-4 |
|
EMC |
2014/30/EU |
|
Shock |
IEC 60068-2-27 (25 G and 50 G) |
|
Vibration |
IEC 60068-2-6 (sinus shaped); IEC 60068-2-64 (broadband noise) |
|
Standards |
CE, UKCA, RoHS |
| POWER |
Power Supply |
USB or Power over Ethernet or 8-30 VDC |
|
Power Consumption |
max. 2.5 W |
| Part number |
|
|
OPTXI41LTF13T090 |
OPTXI41LTF08T090 |
OPTXI41LTF06T090 |
OPTXI41LTF20T090 |
OPTXI41LTF13T090 |
OPTXI41LTF08T090 |
|
