Continuous color measurement including nitrate, carbons and total suspended solids.
Continuous color measurement in acc. to APHA Hazen 2120 and DIN EN ISO 7887:
• Reliable and high accuracy by turbidity compensation
• All in one – Color, COD, NO3, TSS
• Robust materials such as Titanium and Peek
• Minimal maintenance effort by integrated ultrasonic cleaning

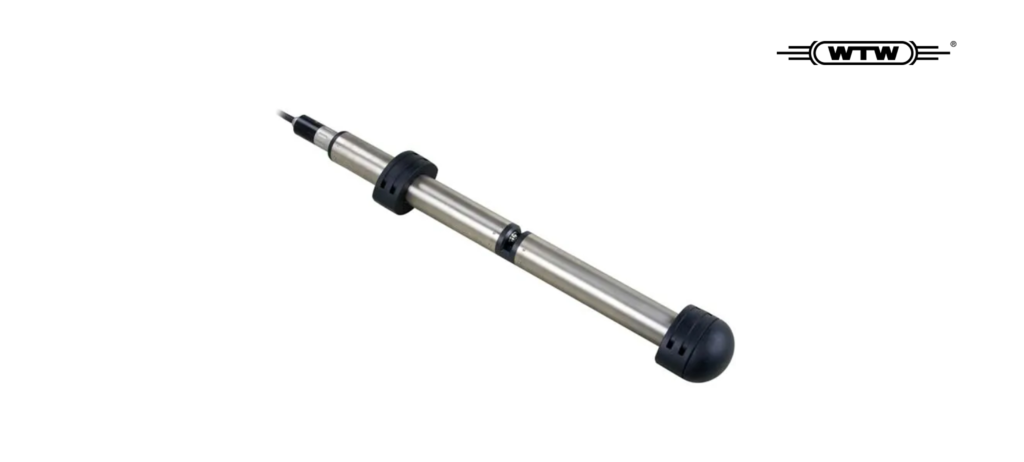

ColorVis 705 IQ:
Spectral UV-VIS sensor to measure color in wastewater, incl. integrated ultrasonic cleaning; available wavelengths (selectable): 340 nm, 350 nm, 390 nm, 410 nm, 445 nm, 455 nm, 465 nm; including turbidity compensation
CarboVis® 705 IQ TS Co:
Like ColorVis 705, including color parameters (COD, BOD, DOC, TOC, SAC, UVT) and total suspended solids
NiCaVis® 705 IQ TS Co:
Like ColorVis 705, including nitrate, carbon parameters (COD, BOD, DOC, TOC, SAC, UVT) and total suspended solids
| Model | ColorVis 705 IQ | CarboVis® 705 IQ TS Co | NiCaVis® 705 IQ TS Co |
| Order No. | 481067 | 481065 | 481066 |
| Measuring method | Absorbance measurment (at specific wavelentgh) | Spectral measurement in the UV-VIS range of 200-720 nm |
|
| Measuring gap (optical layer thickness) |
5 mm | ||
| Application (optimized for) | Municipal wastewater: Effluent | ||
| Available parameters | Color Hazen 340 Hazen 350 Hazen 390 Hazen 445 Hazen 455 Hazen 465 ISO 410 |
Color Hazen 340 Hazen 350 Hazen 390 Hazen 445 Hazen 455 Hazen 465 ISO 410 |
Color Hazen 340 Hazen 350 Hazen 390 Hazen 445 Hazen 455 Hazen 465 ISO 410 |
| Carbons | Carbons | ||
| TSS | TSS | ||
| Nitrate | |||
| Turbidity comp. | Integrated, selectable | ||
| Certifications | CE | ||
| Protection class | IP68 | ||
