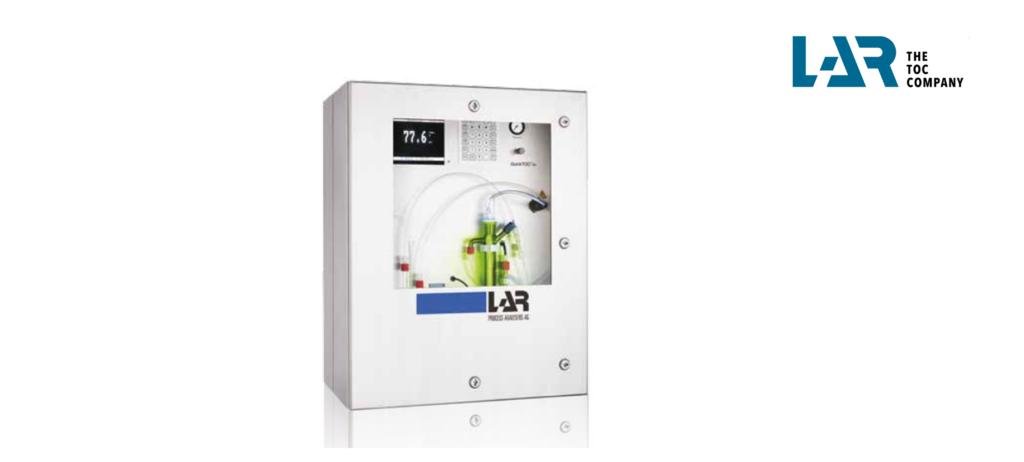

QuickTOCuv™ is an online measurement system for the determination of total organic carbon (TOC) and the dissolved organic carbon (DOC) in pure, drinking, surface and wastewater.
LAR’s QuickTOCuv is an online TOC analyzer for the continuous determination of total carbon (TC), total organic carbon (TOC), non-purgable organic carbon (NPOC), and dissolved organic carbon (DOC) in solid-free water such as pure, drinking, surface and process water.
The process control has been optimized for high performance. The correct function of the NDIR detector is automatically checked on a regular basis by a zero point correction and sensitivity tests. This ensures that deviations are quickly detected and guarantees precise results.
Features and Benetits
• Measurement range: 0,1 – 1,0 mg/l, 0,5 – 10 mg/l, 1 – 50 mg/l, 10 – 100 mg/l, 50 – 500 mg/l, 100 – 1,000 mg/l
• Recognized UV persulphate method
• Continuous determination of TOC, TC, NPOC, DOC
• Accuracy of +/- 2 %
• Auto-calibration
• Automatic system check (zero point correction, sensitivity)
• Reduced consumption of chemicals
• Certified housing for EX zones (EX p) (options for ATEX, IECEx, etc.)
• Analyser availability of minim. 98%
• Maintenance and service max. 15 minutes/ week
• Very low operating and maintenance costs
Applications
Monitoring of pure water, especially in the petrochemical and chemical industries, to detect product spills/losses and to protect water-steam cycles.
• Pure Water
• Process Water
• Boiler Feed Water
• Condensate Return
• Cooling Water
• Drinking Water
| Measurement Technique and Sample Preparation | |
| Measurement Method | UV persulfate oxidation |
| Measurement Compliance | According to DIN EN 1484:1997-08/ ISO 8245:1999-03/ US-EPA 415.1 |
| Measurement Ranges | 0.1 – 1.0 mg/l, 0.5 – 10 mg/l, 1 – 50 mg/l, 10 – 100 mg/l, 50 – 500 mg/l, 100 – 1,000 mg/l |
| Parameter | TOC, TC |
| Sensitivity | Depending on the detector/measuring range used for 100-1,000 ppb –> 50 ppb |
| Oxidation Principle | UV Oxidation, supported by potassium peroxodisulfate |
| Accuracy | Max. 2% of FSR or +/-10ppb whatever is greater |
| Repeatability | Max. 2% of FSR or +/-10ppb whatever is greater |
| Cycle Time | Continuous determination |
| Response Time | TConly: < 5 min. (T90) TOCdirect (NPOC): < 5 min. (T90) |
| Calibration/ Validation | Auto-calibration and automatic system check |
| Particle Size | Particles less than or equal 100µm |
| Temperature and Humidity | |
| Permissible Sample Temperature | 5-65°C / 41°F – 149°F TConly 5-50°C / 41°F – 122°F TOC |
| Ambient Temperature recommended | 10 to 30 °C / 50°F – 86°F |
| Ambient Air Humidity | Max. 80% (non condensing) |
| Dimensions and Weight | |
| Housings | Steel IP54, powder-coated; Optional: Stainless steel, IP 65, EXp Zone 1 and 2 for T3, T4 classes (ATEX, IECEx) |
| Dimensions | W 925 x H 762 x D 825 mm (Standard housing) W 36.4″ x H 30″ x D 32.4″ (Standard housing) |
| Weight | From 57 kg / 125.7Lbs (Standard housing) |
| Electric and Hydraulic Specifications | |
| Inflow and Outflow | Tube 6 mm ID and 8 mm ID |
| Power Supply | 230 /115 V~, 50 / 60 Hz |
| Analogue Output | 0/4 – 20 mA |
| Serial Interface | RS 232, collective alarm, Life-Zero, USB |
| Safety | 10 A internal, 16 A external |
| Internet Capability | LAN, Option for WLAN |
| Option | Remote control via TCP/IP protocol |
