Continuous color measurement including nitrate, carbons and total suspended solids.
Continuous color measurement in acc. to APHA Hazen 2120 and DIN EN ISO 7887:
• Reliable and high accuracy by turbidity compensation
• All in one – Color, COD, NO3, TSS
• Robust materials such as Titanium and Peek
• Minimal maintenance effort by integrated ultrasonic cleaning

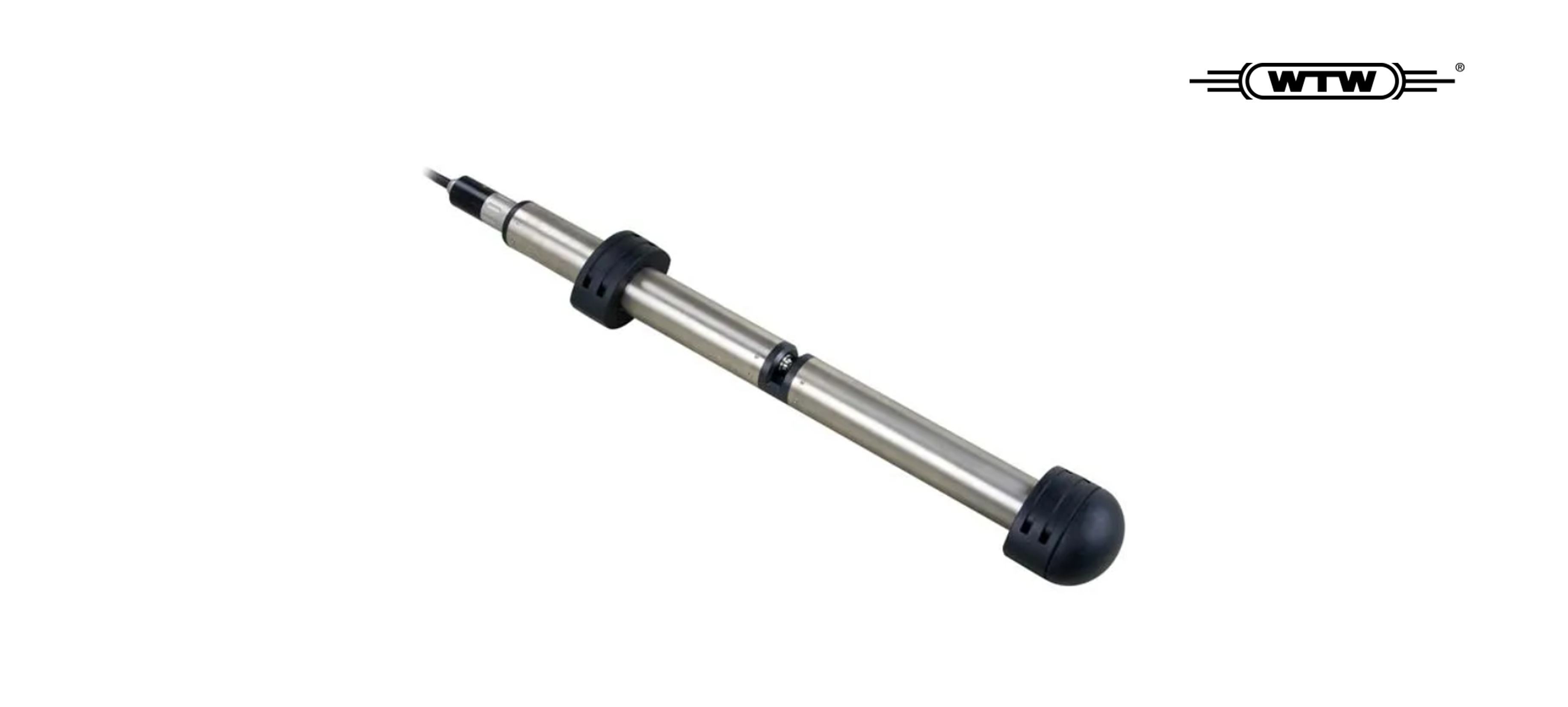

ColorVis 705 IQ:
Spectral UV-VIS sensor to measure color in wastewater, incl. integrated ultrasonic cleaning; available wavelengths (selectable): 340 nm, 350 nm, 390 nm, 410 nm, 445 nm, 455 nm, 465 nm; including turbidity compensation
CarboVis® 705 IQ TS Co:
Like ColorVis 705, including color parameters (COD, BOD, DOC, TOC, SAC, UVT) and total suspended solids
NiCaVis® 705 IQ TS Co:
Like ColorVis 705, including nitrate, carbon parameters (COD, BOD, DOC, TOC, SAC, UVT) and total suspended solids
| Model | ColorVis 705 IQ | CarboVis® 705 IQ TS Co | NiCaVis® 705 IQ TS Co |
| Order No. | 481067 | 481065 | 481066 |
| Measuring method | Absorbance measurment (at specific wavelentgh) | Spectral measurement in the UV-VIS range of 200-720 nm |
|
| Measuring gap (optical layer thickness) |
5 mm | ||
| Application (optimized for) | Municipal wastewater: Effluent | ||
| Available parameters | Color Hazen 340 Hazen 350 Hazen 390 Hazen 445 Hazen 455 Hazen 465 ISO 410 |
Color Hazen 340 Hazen 350 Hazen 390 Hazen 445 Hazen 455 Hazen 465 ISO 410 |
Color Hazen 340 Hazen 350 Hazen 390 Hazen 445 Hazen 455 Hazen 465 ISO 410 |
| Carbons | Carbons | ||
| TSS | TSS | ||
| Nitrate | |||
| Turbidity comp. | Integrated, selectable | ||
| Certifications | CE | ||
| Protection class | IP68 | ||
IQ optical spectral probes (UV-VIS) for carbon parameters and suspended solids
Optimal for the measurement of TOC and DOC in the inlet/effluent of municipal wastewater treatment plants.
LAR’s QuickTOCultra continually checks the TOC content of waste water. Optionally, other sum parameters can be detected aswell. At 1,200 °C,msamples are completely oxidised and within 3 minutes the TRUE TOC result is determined.
LAR’s QuickTOCeffluent is the ultimate online TOC analyzer for the determination of total organic carbon (TOC) for waste water treatment plants effluents. Products by Brand LAR, Germany.
NitraVis® 700 IQ (TS): Sensor with integrated ultrasonic cleaning for the reagent-free measurement of nitrate and suspended solids (optional) – optimized for municipal wastewater treatment systems
