Digital, optical sensor for the IQ SENSOR NET

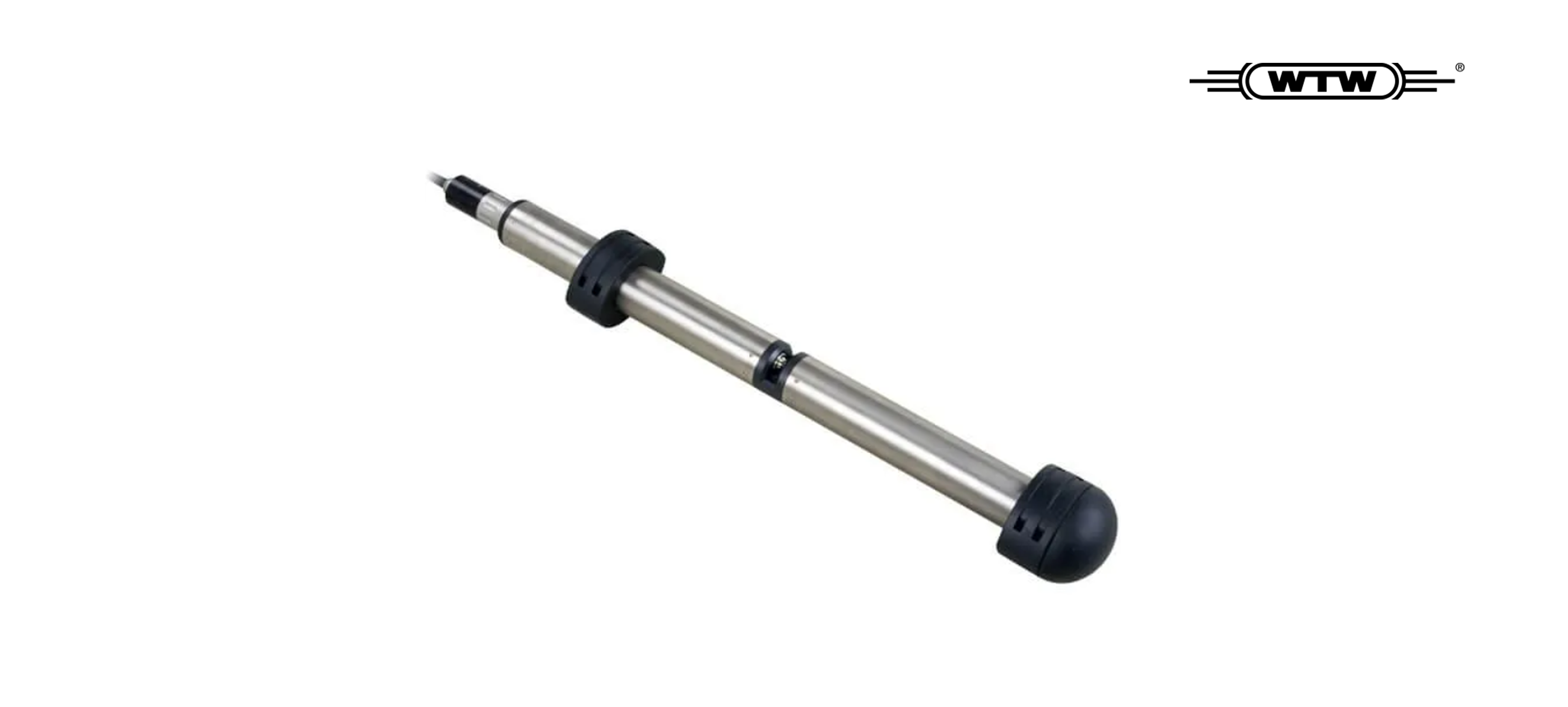

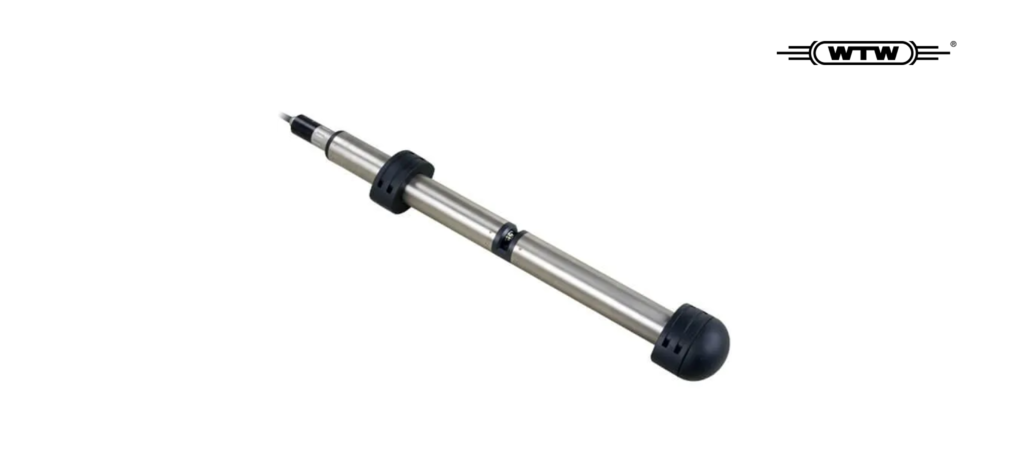

NiCaVis® 700 IQ NI: UV probes with integrated ultrasonic cleaning for the reagent-free measurement of nitrate, nitrite and carbon parameters directly in the process:
• Measurement directly in the process
• No waiting for response times
• Maintenance-free WTW ultrasonic cleaning
• No wear parts, like wipers
• Now available for surface water
The full flexibility for your measurement:
The high resolution of these sensors allows the precise distinction and measurement of nitrate and nitrite. At the same time, up to 3 carbon parameter such as COD, BOD, DOC, TOC, UVT or SAC are determined. This allows the complete monitoring and optimization of processes in the aeration of wastewater treatment plants.
| Order No. | 481054 | 481055 | |
| * The UVT-254 value is standardized to 10 mm gap width. | |||
| Measuring method | Spectral Measurement in the UV Range (200 – 390 nm) | ||
| Measuring gap (optical layer thickness) |
1 mm | 5 mm | |
| Application (optimized for) | Municipal wastewater: | Municipal wastewater: | |
| Measuring range and Resolution | Inlet: | ||
| NO3 | 0.0 … 300.0 mg/l 0.1 mg/l | ||
| NO3-N | 0.00 … 60.00 mg/l 0.01 mg/l | ||
| NO2 | 0.0 … 120.0 mg/l 0.1 mg/l | ||
| NO2-N | 0.00 … 30.00 mg/l 0.01 mg/l | ||
| COD total | 0 … 20,000 mg/l 1 mg/l | ||
| COD dissolv | 0 … 12,500 mg/l 1 mg/l | ||
| TOC | 0 … 20,000 mg/l 1 mg/l | ||
| DOC | 0 … 12,500 mg/l 1 mg/l | ||
| BOD | 0 … 8,000 mg/l 1 mg/l | ||
| SAC254 total | 0 … 5,000 1/m 1 1/m | ||
| UVT254 total* | 0 … 100.0 % 0.1 % | ||
| Aeration: | |||
| NO3 | 0.0 … 300.0 mg/l 0.1 mg/l | ||
| NO3-N | 0.00 … 60.00 mg/l 0.01 mg/l | ||
| NO2 | 0.0 … 120.0 mg/l 0.1 mg/l | ||
| NO2-N | 0.00 … 30.00 mg/l 0.01 mg/l | ||
| COD dissolv | 0 … 12,500 mg/l 1 mg/l | ||
| DOC | 0 … 12,500 mg/l 1 mg/l | ||
| SAC254 total | 0 … 5,000 1/m 1 1/m | ||
| UVT254 total* | 0 … 100.0 % 0.1 % | ||
| Effluent: | Effluent: | ||
| NO3 | 0.0 … 750.0 mg/l 0.1 mg/l | 0.0 … 250.0 mg/l 0.1 mg/l | |
| NO3-N | 0.0 … 150.0 mg/l 0.1 mg/l | 0.00 … 50.00 mg/l 0.01 mg/l | |
| NO2 | 0.0 … 300.0 mg/l 0.1 mg/l | 0.0 … 100.0 mg/l 0.1 mg/l | |
| NO2-N | 0.00 … 75.00 mg/l 0.01 mg/l | 0.00 … 25.00 mg/l 0.01 mg/l | |
| COD total | 0 … 4.000 mg/l 1 mg/l | 0.0 … 800.0 mg/l 1 mg/l | |
| COD dissolv | 0 … 4.000 mg/l 1 mg/l | 0.0 … 800.0 mg/l 1 mg/l | |
| TOC | 0 … 2.500 mg/l 1 mg/l | 0.0 … 500.0 mg/l 1 mg/l | |
| DOC | 0 … 2.500 mg/l 1 mg/l | 0.0 … 500.0 mg/l 1 mg/l | |
| BOD | 0 … 2.500 mg/l 1 mg/l | 0.0 … 500.0 mg/l 1 mg/l | |
| SAC254 total | 0 … 3.000 1/m 1 1/m | 0.0 … 600.0 1/m 1 1/m | |
| UVT254 total* | 0 … 100.0 % 0.1 % | 0.0 … 100.0 % 0.1 % | |
| Flow rate | ≤ 3 m/s | ||
| Pressure Resistance | Maximum 1 bar (incl. sensor connection cable) | ||
| Electrical connections | 2-wire shield cable with quick fastener to sensor | ||
| Electromagnetic Compatibility | EN 61326. Class B. FCC Class A Intended for indispensable operation |
||
| Certifications | CE | ||
| Mechanical | Housing: Titan Grade 2. PEEK, Window: Sapphire glass Protection class: IP 68 |
||
| Weight (without cable) | Approx. 8.82 lb (4 kg) | ||
