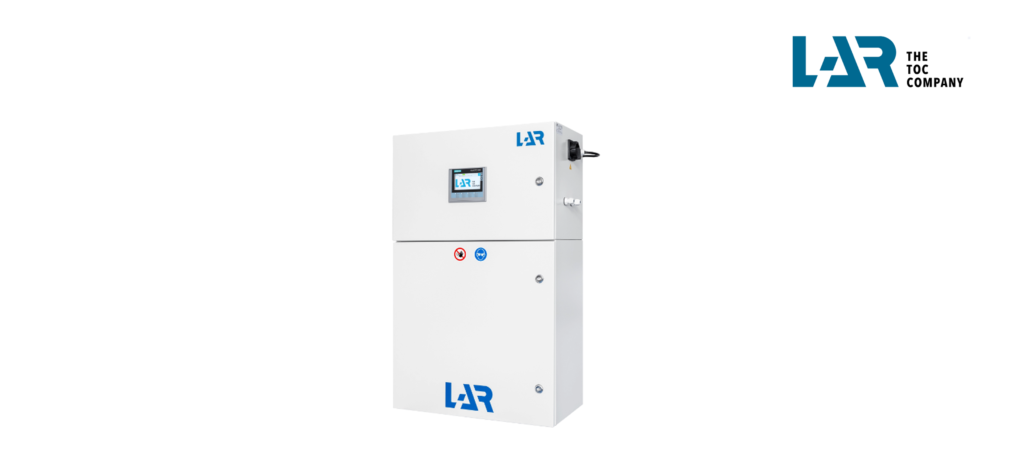

Our new QuickTOCuv II is state of the art and has more great features. LAR’s TOC analyzer QuickTOCuv II is ideal for fast and reliable online monitoring in pure, drinking, surface and wastewater.
LAR’s QuickTOCuv 2 is is ou latest online TOC analyzer for the continuous determination of total carbon (TC) and total organic carbon (TOC), and after correlation the biological oxygen demand (BOD) and chemical oxygen demand (COD) in solid-free water such as pure, drinking, surface and process water. The process control has been optimized for high performance. The measuring ranges can be adjusted by individual user input. The measurement system is controlled by a user-friendly 4″ PLC with touch screen.
Features & Benefits
• Measurement range: 0,1 – 1,0 mg/l, 1 – 10 mg/l, 1 – 50 mg/l, 10 – 100 mg/l, 50 – 500 mg/l, 100 – 1.000 mg/l, 100 – 1.500 mg/l
• Recognized UV persulfate method
• Continuous determination of TOC, TC, after correlation BOD and COD
• Accuracy of +/- 3 %
• Automatic system check (zero point correction, sensitivity)
• Reduced consumption of chemicals
• Certified housing for EX zones (EX p) (options for ATEX, IECEx, etc.)
• Analyser availability of minim. 98%
• Maintenance and service max. 15 minutes/ week
• Very low operating and maintenance costs
Applications
LAR’s total organic carbon analyzer is suitable for a variety of applications and types of water:
• Pure water
• Drinking water
• Boiler feed water
• Condensate return
• Wastewater
| Measurement Technique and Sample Preparation | |
| Measurement Method | UV persulfate oxidation |
| Measurement Compliance | According to DIN EN 1484:1997-08/ ISO 8245:1999-03/ US-EPA 415.1 |
| Measurement Ranges | 0,1-1 ppm, 1-10 ppm, 1-50 ppm- 10-100 ppm, 50-500 ppm, 100-1000 ppm TC or TOC; further on request |
| Parameter | TOC, TC (measured) BOD, COD (by correlation) |
| Sensitivity | Depending on the detector/measuring range used for 100-1,000 ppb –> 50 ppb |
| Oxidation Principle | UV Oxidation, supported by potassium peroxodisulfate |
| Accuracy | Max. 3% of FSR or +/-10ppb whatever is greater |
| Repeatability | Max. 2% of FSR or +/-10ppb whatever is greater |
| Cycle Time | Continuous determination |
| Response Time | < 6 min |
| Calibration/ Validation | Auto-calibration and automatic system check |
| Temperature and Humidity | |
| Permissible Sample Temperature | Until 50 °C |
| Ambient Temperature recommended | 10 to 30 °C |
| Ambient Air Humidity | < 60% |
| Dimensions and Weight | |
| Housings | IP65, powder-coated steel housing; Optional: ATEX I / IECex T4 IP65 powder-coated steel housing |
| Dimensions | H 980 x W 600 x D 350 mm |
| Weight | Approx. 53 kg (standard) |
LAR’s toxicity analyzer ToxAlarm™ continually monitors drinking and surface water for pollutants. Potential toxins in water are determined through the reaction of highly sensitive bacteria.
LAR’s QuickTOCultra continually checks the TOC content of waste water. Optionally, other sum parameters can be detected aswell. At 1,200 °C,msamples are completely oxidised and within 3 minutes the TRUE TOC result is determined.

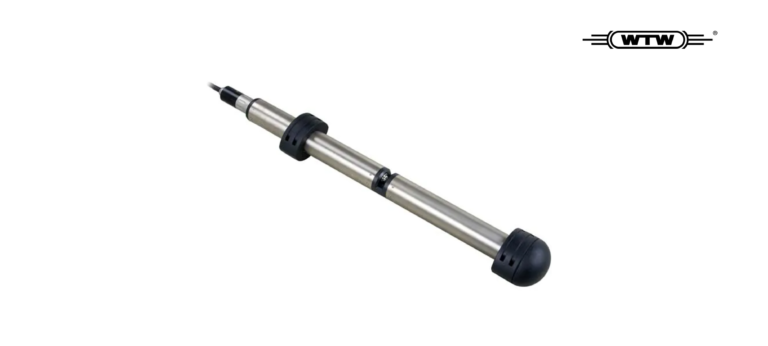

Sensor with integrated ultrasonic cleaning for the reagent-free measurement of nitrate and suspended solids (optional) – optimized for municipal wastewater treatment systems
