Digital pH/ORP armature to be used with electrodes, connectable to the IQ SENSOR NET

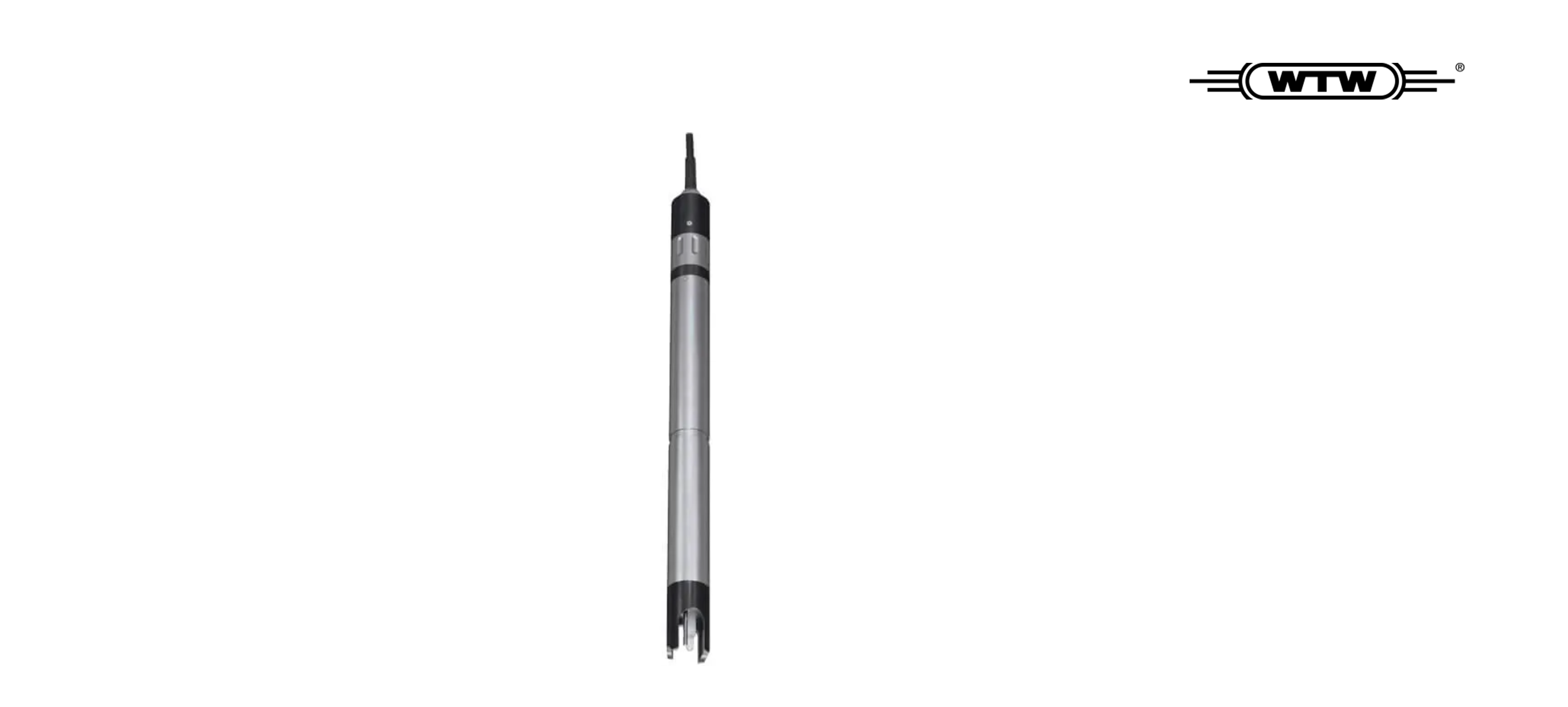

SensoLyt®700 IQ – digital pH/ORP armature with integrated preamplifier and temperature sensor as well as lightning protection to be connected to IQ SENSOR NET:
• Stable signals by digital signal processing
• Convenient by calibration in the lab and glass breakage detection
• Reliable measured values by integrated temperature sensor
By storing calibration values within the sensor, a “pre-calibrated pH-measurement” can be generated. Due to our quick-lock, the sensor can be disconnected and – after laboratory calibration – re-connected at the site easily. Inconvenient calibrations in the field under adverse conditions can be completely eliminated if there is an IQ connection in the lab.
A special switch also allows automatic monitoring for glass breakage. The required replacement of the SensoLyt® electrode is quick and uncomplicated.
The sea water model is optimized for the use in special media: All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.
| Modele | SensoLyt® 700 IQ | SensoLyt® 700 IQ SW* |
| Order No. | 109170 | 109171 |
| Measuring method | Potentiometric | |
| Measuring range | 0,00 … 14,00 pH (depending on the electrode) ± 2000mV (depending on the electrode) |
|
| Resolution | 0,01 pH 1 mV |
|
| Accuracy | Depends on calibration ± 0,2 pH; ± 20 mV |
|
| Temp. measurement | Integrated NTC, -5 °C … +60 °C | |
| Ambient conditions | Operating temperature: 0 °C … +60 °C | |
| Electrical connections | 2-wire shield cable with quick fastener to sensor | |
| Weight (without cable) | Approx. 970 g | Approx. 1.800 g |
| * SW: Sensor as sea water model (with plastic arming (POM)) | ||
