Coolvacuum pilot freeze dryers are designed for customers that wish to develop and optimize freeze drying recipes and be able to scale up to a production unit.
The range of pilot freeze dryers, featuring 5 sizes and a wide portfolio of optional equipment and software confi gurations, will allow you to analyze in detail your production challenges or manufacture small batches.
• Chamber / condenser isolation valve.
• Vials stoppering.
• Manifold for bottles.
• Paneled front for clean rooms integration.
• SCADA software to process production data acquisition in accordance with FDA 21CFR part 11.
• Organic solvent condenser.
• Wireless temperature probes.
• Vial sampling device.
• Capacitive pressure sensor.
• Comparative pressure reading.
• Ethernet connectivity (remote connection).
• Coolvacuum Trend software for cycle / batch data management

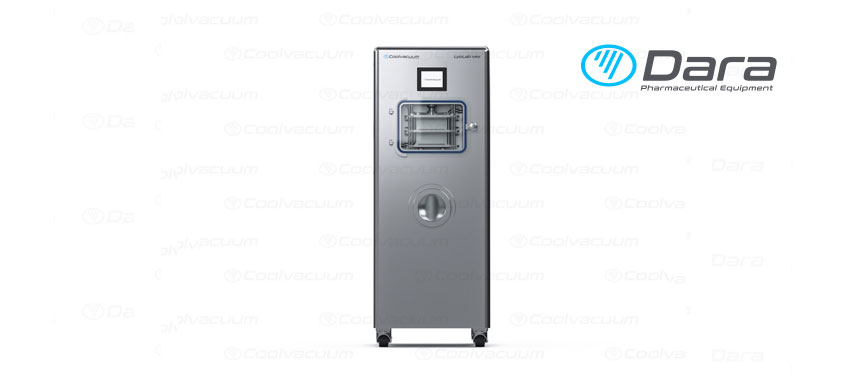

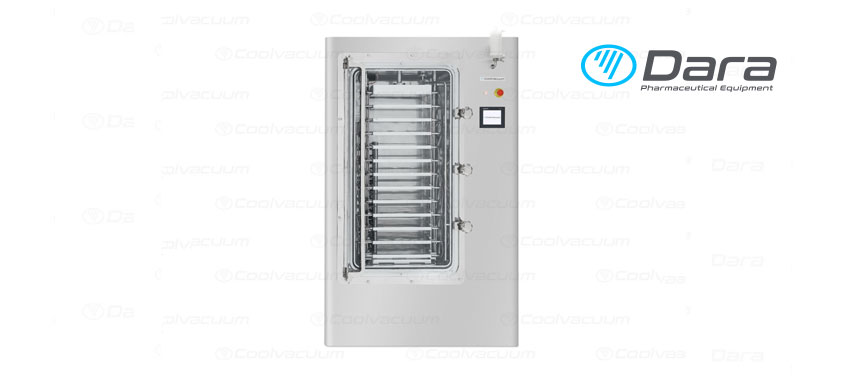

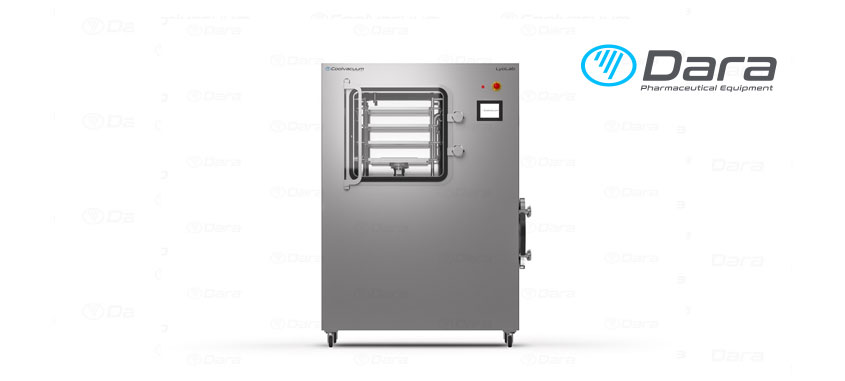

| Model | LyoLab MINI | LyoLab | LyoLab+ | |||
| Shelf area | 0,12 m2 | 0,06 m2 | 0.5 m2 | 1 m2 | 1.5 m2 | 2 m2 |
| Shelf dimensions (W x D) | 200 x 300 mm | 380 x 450 mm | ||||
| Nº of shelves | 2 + 1 | 1 + 1 | 3 + 1 | 6 + 1 | 9 + 1 | 12 + 1 |
| Shelves clearance | 70 mm | 120 mm | 90 mm | 65 mm | 90 mm | 65 mm |
| Product contact parts | Stainless steel AISI 316L | |||||
| Condenser capacity | 6 kg | 30 kg | 40 kg | |||
| Vacuum pump flow | 12 m3/h | 24 m3/h | 30 m3/h | |||
| Condenser temperature | -85 ºC | |||||
| Shelves temperature range | from -50 ºC to +70 ºC | from -60 ºC to +80 ºC | ||||
| Heating power | 180 W | 1,000 W | 3,000 W | |||
| Overall dimensions (W x D x H) | 640 x 630 x 1.655 mm | 1,300 x 850 x 1,800 mm | 1,300 x 980 x 2,000 mm | |||
| Weight | 250 kg | 700 kg | 1,000 kg | 1,400 kg | 1,500 kg | |
| Ice condenser capacity / 24h | 5 kg | 15 kg | 20 kg | |||
