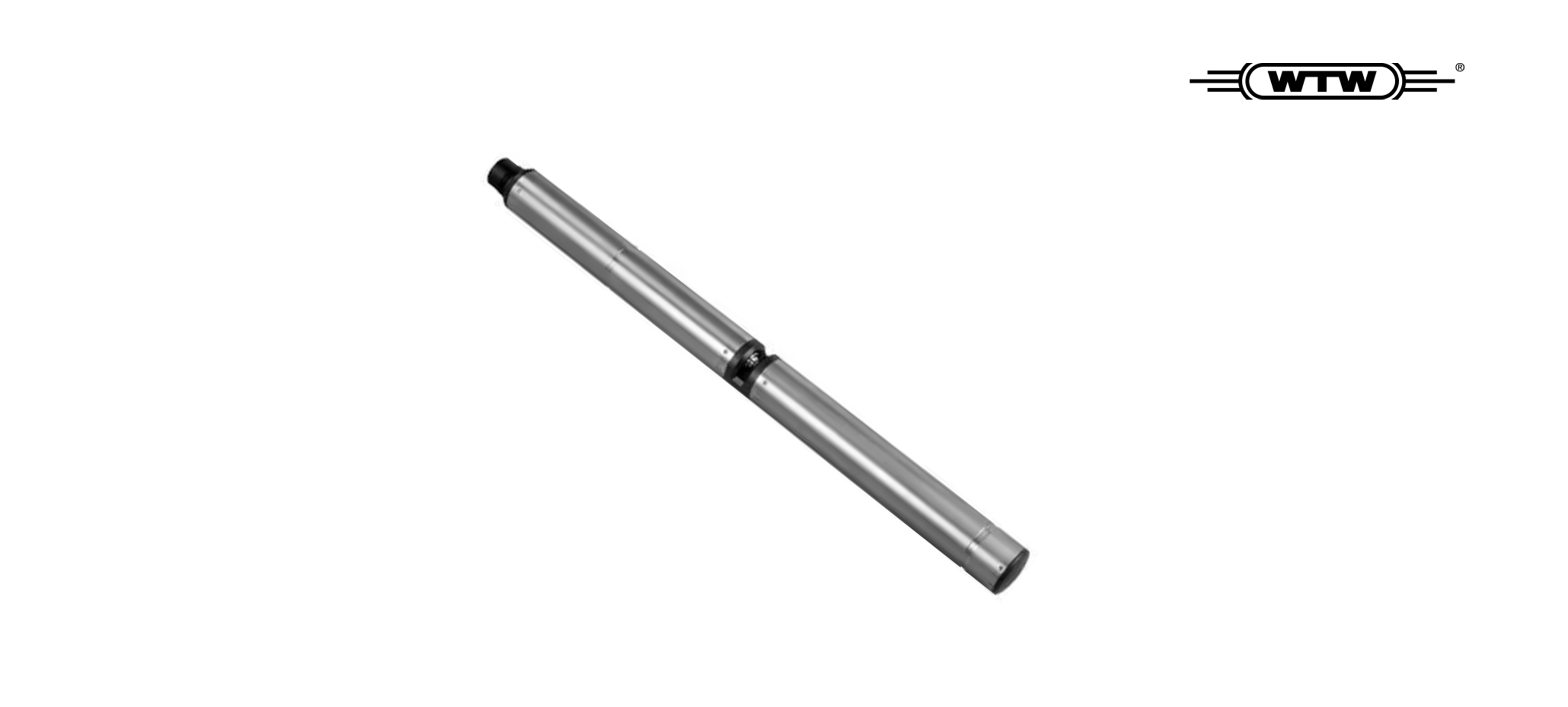

UV701 UV IQ sensors for SAC, 1 mm
UV705 UV IQ sensors for SAC, 5 mm
SAC and UVT sensor for the IQ SENSOR NET
UV 700 IQ SAC: Low-cost probe (integrated ultrasonic cleaning, turbidity compensation) for the maintenance-free and reagent-free SAC measurement according to DIN 38404 C3:
• No wear parts
• No replacement of seals
• No risk of penetrating water
• No corrosion
With the new sensor UV 700 IQ SAC, you can determine the spectral absorption coefficient at 254 nm directly and without chemicals. Turbidity influences are compensated by a reference measurement at 550 nm.
As a sum parameter, similar to the COD, the SAC allows information about the organic contamination of water. This makes this sensor ideal to capture organic deposits in wastewater and surface waters. In addition to the SAC, you can use this sensor to determine the UV transmission at 254 nm. This is most commonly used in the control of UV disinfection systems.Specifications
| Model | UV 701 IQ SAC | UV 705 IQ SAC | |
| Measuring method | UV-Absorptionsmessung 254 nm (Kompensation 550 nm) | ||
| Measuring gap (optical layer thickness) | 1 mm | 5 mm | |
| Application(optimized for) | Municipal wastewater with a low proportion of industrial wastewater, wastewater treatment plants, surface water |
||
| Measuring range and Resolution | COD | 0.0 … 12,500 mg/l 1 mg/l | 0.0 … 800 mg/l 1 mg/l |
| TOC | 0.0 … 20,000 mg/l 1 mg/l | 0.0 … 500.0 mg/l 0.1 mg/l | |
| DOC | 0.0 … 12,500 mg/l 1 mg/l | 0.0 … 500.0 mg/l 0.1 mg/l | |
| BOD | 0.0 … 8,000 mg/l 1 mg/l | 0.0 … 500.0 mg/l 0.1 mg/l | |
| SAC254 total | 0.0 … 3,000 1/m 1 1/m | 0.0 … 600.0 1/m 0.1 1/m | |
| SAC254 dissolv | 0.0 … 3,000 1/m 1 1/m | 0.0 … 600.0 1/m 0.1 1/m | |
| UVT254 total* | 0.0 … 100.0 % 0.1 % | 0.0 … 100.0 % 0.1 % | |
| UVT254 dissolv* | 0.0 … 100.0 % 0.1 % | 0.0 … 100.0 % 0.1 % | |
| Flow rate | ≤ 3 m/s | ||
| Pressure Resistance | Maximum 1 bar (incl. sensor connection cable) | ||
| Electrical connections | 2-wire shield cable with quick fastener to sensor | ||
| Electromagnetic Compatibility | EN 61326, Class B, FCC Class A | ||
| Intended for indispensable operation | |||
| Certifications | CE | ||
| Mechanical | Housing: Titan Grade 2, PEEK | ||
| Window: Sapphire glass | |||
| Protection class: IP 68 | |||
| Weight (without cable) | Approx. 8.82 lb (4 kg) | ||
| Warranty | 2 years for defects in quality | ||
| * The UVT-254 value is standardized to 10 mm gap width. | |||
