ECOMSMART : Ambient Air Quality Monitoring

Ideal for monitoring air quality in ambient or harsh environments, ECOMSMART tracks pollutants such as NO2, O3, CO, NO, SO2, H2S, VOC, CO, PM1/2.5/4/10 (and others) and temperature, pressure and humidity.

Easy to install, ECOMSMART automatically connects to the environmental data web platform https://icomesure.com for real-time data monitoring and sensors remote control.

Ideal for monitoring air quality outside or in workshops, EcomSmart measures the following key parameters:

• Air pollutant concentrations: PM1, PM2.5, PM4, PM10, TSP, O3, NO, NO2, SO2, H2S, NH3, HCl, Cl2, CH2O… (available on request)
• Meteorological parameters: air temperature, air pressure and relative humidity
• Means of localization: GPS

EcomSmart collects data in real time and wirelessly transmits them to Ecomesure’s advanced web platform, where they can be analyzed, managed and uploaded onto websites, smart city platforms and imported into software programs. The web platform also allows you to remotely control your monitor.

BENEFITS
• All-in-one multi-parameter system
• Controlled calibration process for quality measurement
• Easy to install and use
• Centralized services on i-comesure.com
• Stand-alone version (solar panel & battery)

APPLICATIONS
• Urban centres, Smart cities
• Industrial sites (quarries, mines, airports, ports)
• Workshops, warehouses, work-sites
• Roads, tunnels, subway

 Dimensions/Weight  L8.2” x W7.8” x H3.5” / 2 kg
 Connectivity  Ethernet
 Options: Wi-Fi – 3G/4G/GPRS – LTE-M – LoRa – ZigBee Pro
 Frequency  One measurement every 60 seconds (ajustable from 10s to 1h)
 Digital I/O  1 Digital Input / 1 Digital Output
 Localization  Accelerometer, GPS
 Data security  Local + Cloud-based encryption
 WPA2-Enterprise compatible
 Data storage  Built-in microSD memory card
 Web storage
 Power supply  5 VDC USB, 2 A max. Adapter included: 100-240 VAC 50/60 Hz
 IP67 power supply
 Built-in battery backup (8h of use, 12h in LoRa) optional
 “Autonomy kit” option  Solar panel (55 W, 90 W, 115 W); Battery weather-resistant assembly
 External fastening  Clamped onto a post or a fence, weather-resistant (equivalent IP54)
 Certifications  CE Class B, FCC Class A
 Patent  Applicable in France, Europe, United States
 Sensors  Technology  Measurement Range D  Detection Limit
 NO2  Electrochemical  0-20 ppm  < 0.02 ppm
 O3  0-20 ppm  < 0.02 ppm
 CO  0-500 ppm  < 0.02 ppm
 NO  0-20 ppm  < 0.08 ppm
 SO2  0-50 ppm  < 0.02 ppm
 H2S  0-50 ppm  < 0.01 ppm
 NH3  0-100 ppm  < 3 ppm
 CH2O  0-10 ppm  < 0.1 ppm
 Cl2  0-20 ppm  < 0.2 ppm
 HCl  0-20 ppm  < 0.5 ppm
 VOC50 and VOC3000  PID  0-50 ppm | 0-3000 ppm   1 ppb | 50 ppb
 CH4  NDIR  0-2.5%  500 ppm
 CO2  0-5000 ppm  1 ppm
 PM1,PM2,5, PM4, PM10  Laser/Optical  0-1000 μg/m³  1 μg/m3
 TSP  0-2000 µg/m3  1 μg/m3

Related Products

Ecomlite2 1

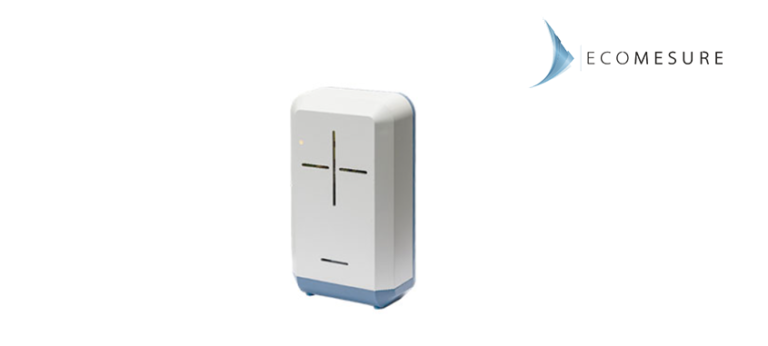

ECOMLITE 2 : Monitoring Indoor Comfort
