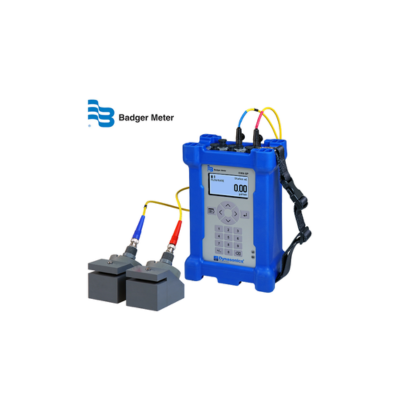

DXN-5P Portable Ultrasonic Flow Meter

The Dynasonics^® DXN-5P Portable Hybrid Ultrasonic flow meter is a powerful tool used for troubleshooting flow issues, whether you want to quickly confirm the flow reading of another meter or to data log flow or thermal energy over an extended period.

Portable Flow Measurement Technology

The Dynasonics DXN-5P Portable Hybrid Ultrasonic Flow Meter is a true hybrid instrument, capable of selecting the best method to measure the flow of clean liquids or liquids with gases or suspended solids

Features

Optimize Performance. Identify leaking valves, airlocks, entrained air or sediment that may damage equipment or reduce efficiency.
Streamlined Installation. It can be installed and set up by a single individual by clamping the meter on the pipe—it does not require operations to be drained or shut down.
Extended Viewing Range. Connect over Bluetooth to monitor flow measurements on the SoloCUE^® Flow Device Manager app while operating other equipment.

Size Range	1/2…48 in.
Temperature Range	-40…250° F
Flow Range	0.7…33,000 gpm
Accuracy	± 0.5% ± 0.025 ft/s (0.008 m/s)

Product Documentation

Click Download
