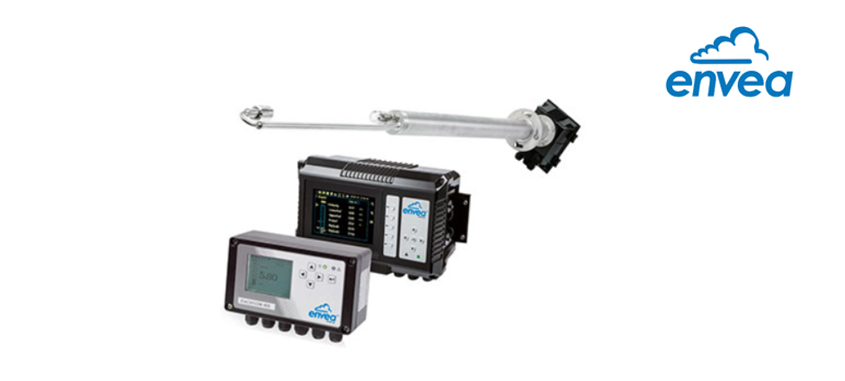

Approved flue gas velocity CEM for stack velocity, volumetric flow and pollutant mass release calculations when linked to Gas and Dust CEMS
• Continuous superior measurement of flue gas velocity and temperature
• Inbuilt automatic reference self-checks for regulatory compliance (QAL3)
• Large measurement path (400mm) permits accurate and increased representative measurement
• Facilitates stack velocity, volumetric flow and pollutant mass release calculations when linked to gas and dust CEMS
• Angled probe version to fit existing perpendicular ports providing ease of installation
| Measurement capability | 0 – 50 m/s |
| Resolution | 0.1 m/s |
| Sensor Variants | 316 Stainless Steel |
| Stack Temperature Ranges | -20°C – 200°C |
| Functionality and QA Checks | Automatic reference checks |
| Data Output | RS485 (Modbus) output to Controller |
| Enclosure Protection Rating | IP65 |
| Measured parameters | Flue-gas velocity |
| Technology | FlueSonic™ Ultrasonic |
| Measurement/Monitoring capability | 0 – 50 m/s* |
| Stack/Duct diameter suitability | up to 10m |
| Flue gas temperature | up to 200°C |
| Baghouse | YES |
| Cartridge Filter | YES |
| Ceramic Filter | ✓ |
| Coalescent Filter | YES |
| Cyclone | YES |
| Electrostatic Precipitator (ESP) | YES |
| Wet Electrostatic Precipitator | YES |
| Wet Scrubber | YES |
| QA checks | YES |
| *Application dependant | |
Stack velocity, volumetric flow and pollutant mass release calculations (when linked to gas and dust CEMS)
Typical Applications:
• Incineration
• Metals (eg Steel/Aluminium)
• Minerals (eg Cement/Gypsum)
• Chemicals (eg Refinery / Rubber)
• Power Generation Plant (eg Coal/Biomass)
