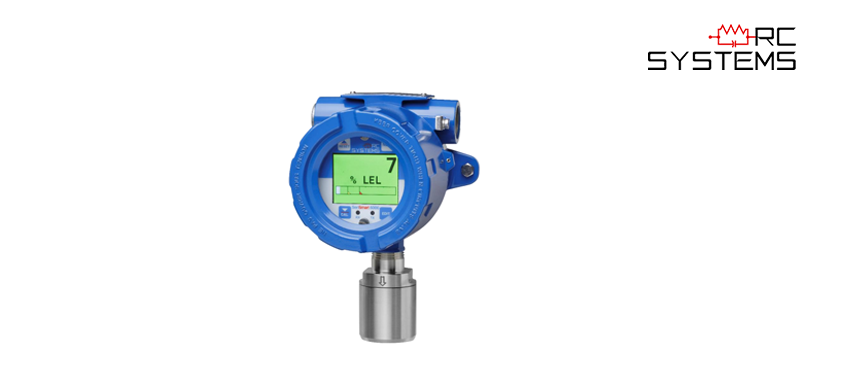

The State-of-the-art SenSmart 6000 gas detector is built with ourproven ‘ST-44’ transmitter. CSA Certified for Class 1, Div 1 locations
The State-of-the-art SenSmart 6000 gas detector is built with our proven ‘ST-44’ transmitter. This versatile unit has a bright, vivid color display and embedded Ethernet with Webserver and Modbus TCP.
The high performance, universal gas detector supports dual smart sensors with different type like Electrochemical, Catalytic Bead, Infrared and Photoionization sensors.
Features
• CSA Certified for Class 1, Div 1 locations
• Vivid QVGA Backlit Color TFT Display
• Display Color Changes with Alarm Status
• Standard Ethernet Port with Web Server and Modbus TCP
• Dual Smart Sensor Capable
• Sensor Life Indication
• Remote Sensor Mount up to 4000’
• Non-intrusive One-Man Calibration
• Temperature Compensation
• Two RS-485 Ports for Modbus
• 3 Programmable Relays and Fault Relay Available
• Heated elements available for low temperature
| Power Supply | 10-30VDC at < 10 watts with relay board (all relays energized) |
| Display | QVGA backlit color TFT 320×240 |
| Channel One Input | Electrochemical, Catalytic Bead, Infrared, Photoionization Detector sensor |
| Channel Two Input (Model 6900 Only) |
Electrochemical, Infrared , sensor |
| Standard Output | Dual 3-wire 4-20mA current source. Max loop Resistance 600 ohms @ 24VDC, Ethernet RJ45 with built-in web Server, Modbus/TCP |
| Optional Outputs | Three programmable relays plus dedicated FAULT relay Dual programmable master / slave MODBUS RS-485 serial interfaces |
| Environmental | Operating range -40°C to +60°C Sensors include sensor heater for low temperature operation Relative humidity to 95% for IR; to 85% noncondensing when using electrochemical sensors |
| Housing | Aluminum with epoxy paint standard; Optional #316 stainless steel, Optional Ul94 Poly Black Plastic Enclosure |
| Dimensions | (Aluminum) Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg) (Poly) Width 5” (127 mm), Height 7” (178 mm), Depth 4” (101 mm) Shipping weight 3 pounds (2 kg) |
| CSA Approvals | Cast Aluminum Enclosure: Explosion-Proof Cl 1 Div 1 Gr ABCD with 10-0247 (includes sinter) Non-Incendive Cl 1 Div 2 Gr ABCD with 10-0247 or 10-0247IS UL94 Poly Black Plastic Enclosure: Non-Incendive Cl 1 Div 2 Gr ABCD |
