The pyrometer optris CSmicro 3M has been designed for a temperature range from 50°C to 600°C
The pyrometer optris CSmicro 3M has been designed for a temperature range from 50°C to 600°C. Its special spectral range of 2.3 µm makes it the ideal IR pyrometer for temperature measurement of metallic surfaces starting from 50°C and it allows for measurements through glass.

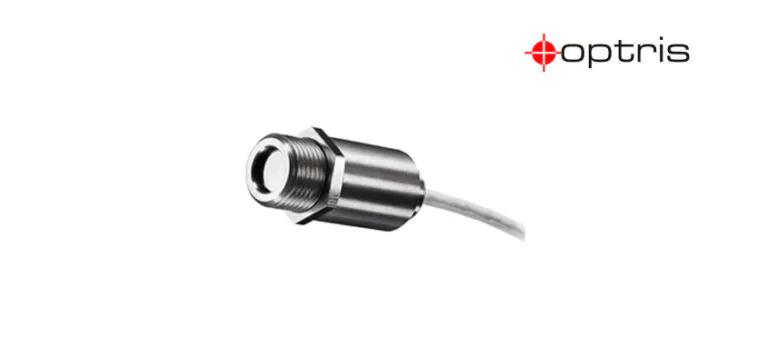

The small infrared measuring head is optimally suited for installation in limited spaces and subsequently makes possible an especially cost-efficient mechanical process integration.
| echnical Details of the Pyrometer optris CSmicro 3M | |
| Measurement Specifications | |
| Temperature range1) | 50 … 350°C (3ML) |
| 100 … 600°C (3MH) | |
| Spectral range | 2.3 µm |
| Optical resolution | 22:1 (3ML) |
| 33:1 (3MH) | |
| Optics | SF, CF, CF1 |
| System accuracy2) (at ambient temp. 23 ±5°C) ± (0.3% of reading + 1°C) | |
| Repeatability (at ambient temp. 23 ±5°C) | ± (0.1% of reading + 1°C) |
| NETD3) | 30 mK (3ML) / 50 mK (3MH) |
| Response time4) (90%) | 8 ms (mA version: 20 ms) |
| Emissivity / Gain | 0.100 – 1.100 |
| Transmissivity | 0.100 – 1.100 |
| Dimensions of electronics | Dimensions of electronics |
| Software | optris® Compact Connect (Windows) |
| IR mobile (Android) | |
| General Specifications | |
| Environmental rating | IP 65 (NEMA-4) |
| Ambient temperature | -20 … 85 °C (sensing head) |
| -20 … 80 °C (electronics) | |
| -20 … 75 °C (electronics / mA version)5) | |
| Storage temperature | -40 … 85°C (sensing head and electronics) |
| Relative humidity | 10 – 95%, non condensing |
| Vibration | IEC 60068-2-6 / -64 |
| Shock | IEC 60068-2-27 (25 G and 50 G) |
| Weight | 42 g |
| Electrical Specifications | |
| Output / analog | 0 – 5/10 V (mV version) or 4 – 20 mA (mA version) |
| Output / alarm | 0 – 30 V / 50 mA (open collector) |
| (mA version: 500 mA) | |
| Output/ digital | uni / bidirectional, 9.6 kBaud, 0/3 V digital level / USB optional |
| LED-functions | alarm indication, automatic aiming support, self diagnostic, |
| temperature indication (via temperature code) | |
| Input (0-10V) | Programmable functional input for external emissivity setting6) / |
| ambient temperature adjustment6), triggered signal output or peak-hold function | |
| Cable length | head – electronics: 3 m |
| after electronics: 3 m, 6 m | |
| Power supply | 5-30 V DC |
| Current draw | 9 mA (mV version) |
1) TObject > TSensing head + 25 °C
2) ε = 1, response time 1 s
3) At time constant of 200 ms and TObj 150 °C (3ML) / 300 °C (3MH)
4) With dynamic adaption at low signals
5) mA version: For Vcc (supply voltage) 5 – 12 V DC/ the electronic‘s max. ambient temperature is 65 °C at Vcc >12 V DC
6) mV version only
