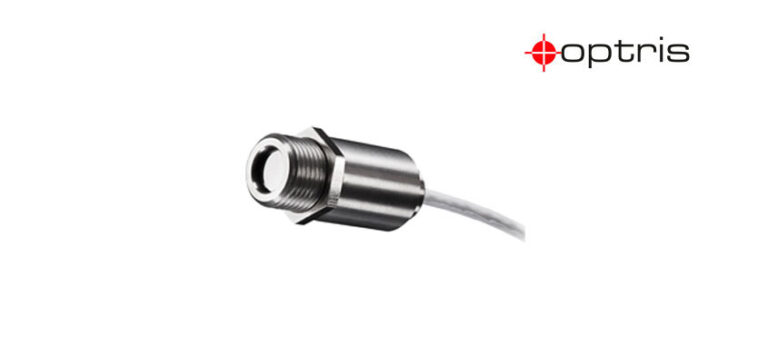

The pyrometer optris CSmicro 2M has been designed for a temperature range from 250°C to 1,600°C.
The pyrometer optris CSmicro 2M has been designed for a temperature range from 250°C to 1,600°C. Its special spectral range of 1.6 µm makes it the ideal IR pyrometer for temperature measurements of metals.
The small infrared measuring head is perfectly suited for installation in very limited spaces and allows for an especially cost-efficient mechanical process integration.
| Technical Details of the Pyrometer optris CSmicro 2M | |
| Measurement Specifications | |
| Temperature range1) | 250 … 800°C (2ML) |
| 385 … 1600°C (2MH) | |
| Spectral range | 1.6 µm |
| Optical resolution | 40:1 (2ML) |
| 75:1 (2MH) | |
| CF-lens (optional) | 2.7 mm @ 110 mm (2ML) |
| 1.5 mm @ 110 mm (2MH) | |
| System accuracy | ±(0.3% of reading +1°C)1)2) |
| Repeatability | ±(0.1% of reading +1°C)1)2) |
| Temperature coefficient | ± 0.05 K/K or ± 0.05 %/K3) |
| NETD4) | 40 mK (2ML) / 50 mK (2MH) |
| Response time (90%) | 8 ms (mA version: 20 ms) |
| Emissivity / Gain | 0.100 – 1.100 |
| Transmissivity | 0.100 – 1.100 |
| Dimensions of electronics | length: 35 mm, diameter: 12 mm |
| Software | optris® Compact Connect (Windows) |
| IR mobile (Android) | |
| General Specifications | |
| Environmental rating | IP 65 (NEMA-4) |
| Ambient temperature | -20 … 125 °C (sensing head) |
| -20 … 80 °C (electronics) | |
| -20 … 75 °C (electronics / mA version)5) | |
| Storage temperature | -40 … 85°C (sensing head and electronics) |
| Relative humidity | 10 – 95%, non condensing |
| Vibration | IEC 60068-2-6 / -64 |
| Shock | IEC 60068-2-27 (25 G and 50 G) |
| Weight | 42 g |
| Electrical Specifications | |
| Output / analog | 0 – 5/10 V (mV version) or 4 – 20 mA (mA version) |
| Output / alarm | 0 – 30 V / 50 mA (open collector) |
| (mA version: 500 mA) | |
| Output/ digital | uni- / bidirectional, 9.6 kBaud, 0/3 V digital level / USB optional |
| LED-functions | alarm indication, automatic aiming support, self diagnostic, |
| temperature indication (via temperature code) | |
| Input | Programmable functional input for external emissivity setting6) / |
| ambient temperature adjustment6), triggered signal output or peak-hold function | |
| Cable length | head – electronics: 3 m |
| after electronics: 3 m, 6 m | |
| Power supply | 5-30 V DC |
1) At ambient temperature 23 ±5 °C, ε = 1, response time 1 s
2) Object temperature >300 °C
3) For ambient temperatures <18 °C and >28 °C; whichever is greater
4) At time constant of 8 ms and TObj 500 °C (2ML) / 800 °C (2MH)
5) mA version: For Vcc (supply voltage) 5 – 12 V DC/ the electronic‘s max. ambient temperature is 65 °C at Vcc >12 V DC
6) mV version only
