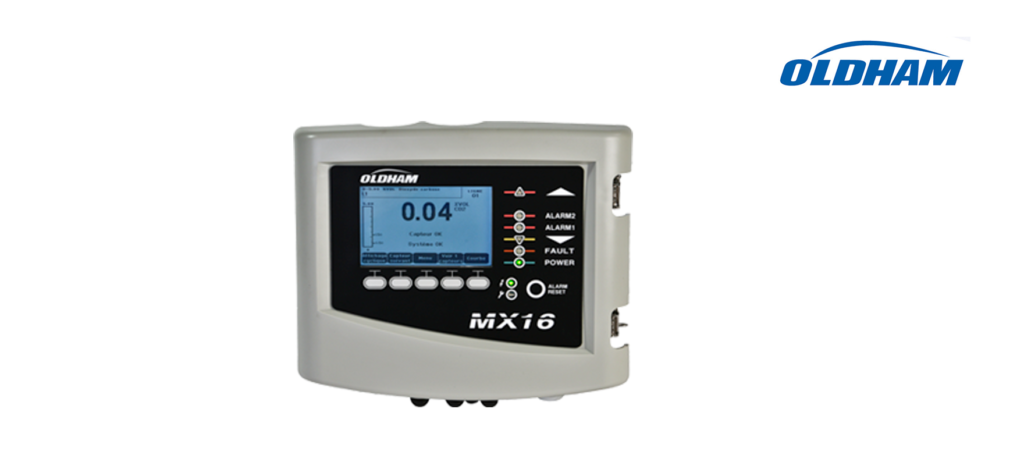

The MX 16 is a compact digital or analog controller, one input, low-profile controller that continuously monitors gas detection, like O2, CO2, CH4, H4, LPG.
The MX 16 is a compact digital or analog controller, one input, low-profile controller that continuously monitors gas detection, like:
• O2
• CO2
• CH4
• H4
• LPG
Specially designed for applications in laboratory, storage, small boiler room, and breweries or battery charging rooms, the MX 16 measuring unit prevents the risks of explosion linked to the presence of toxic, anoxic and explosive gases in the ambiant air. Small size, ease of installation and use are the main strengths of the plant. Used with the OLCT 10N O2 and CO2 digital sensor series or any other O2, CO2, CH2, GPL and H2 analog sensor, the MX 16 guarantees you a solution that complies with French and European standards.
NEW! Discover the preconfigured pack with cable : Easy Duo Analog and digital controller
• Low cost and Easy to install
• 1 measurement line / up to 1 detectors
• Integrated relays
• RS-485 Signal Output (optional)
NEW!
Available in Easy Duo version, a new controller + detector + cable* offer.
This offer applies to versions:
• MX 16 + OLCT 10N O2
• MX 16 + OLCT 10N CO2
Simplified configuration (no software)
Available in 4-20mA version.
Easy and also ready to use.
| Dimensions (w*h*d) | 265 x 266 x 96 mm (10.4 x 10.5 x 3.8 inches) |
| Ingress protection | IP55 |
| Cable entries (wallmounted version) | 3 M16 cable glands, 4 to 8 mm² 2 M20 cable glands, 6 to 12 mm² |
| Display | LCD back-lit display + smart keys Display in grayscale mode in case of fault Bar graph with alarm threshold |
| Visual indicators | 6 LEDs 5 LEDs for Detector status line 1 common LED for Fault condition 1 common LED for Power condition |
| Buttons | 5 smart keys 1 audible alarm accept/reset button |
| Operating use | |
| Operating temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature | -20°C to +50°C (-4°F to +122°F) |
| Humidity | 5 to 95% RH |
| Power input | 100-240Vca 50-60Hz (35W) |
| Consumption | 250mA max. (without detector) |
| Measurement lines | |
| Digital lines | 1 (for OLCT 10N, iTrans 2, OLCT 80, Meridian, OLCT 710) RS-485 communication, proprietary protocol, 9600 Baud 2 twisted shielded-pair cable |
| Analog channels | 1 (4-20mA) 0-23mA analog signal input (4 to 20mA reserved for measurement) 120 Ohm load resistance 2 or 3 core shielded cable depending on detector |
| Maximum current outputper line | 0,42A (@ 50°C) to 1A (@ 30°C) with intermal AC power |
