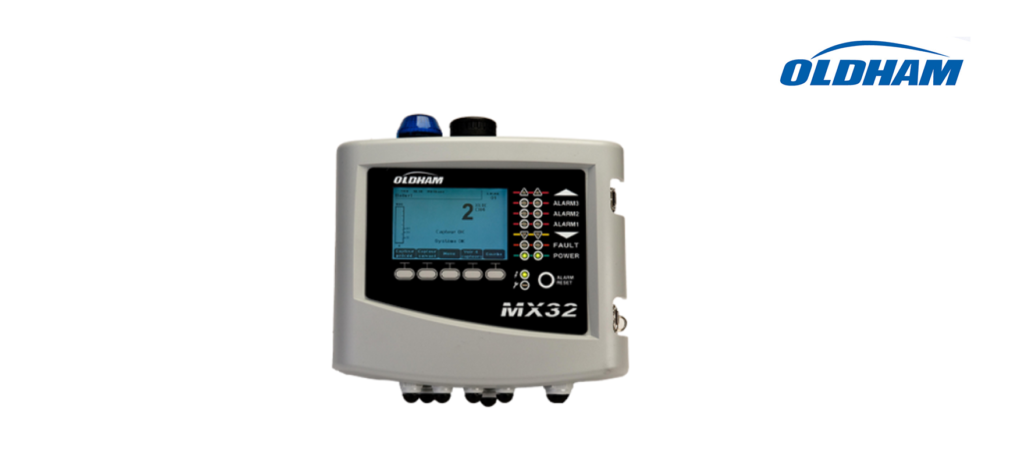

We introduce the new MX 32, a controller that takes analog & digital inputs and covers all needs for a wide variety of applications.
We introduce the new MX 32, a controller that takes analog & digital inputs and covers all needs for a wide variety of applications.
The MX 32 is a compact, low-profile controller that continuously monitors gas detection and more generally any 4-20 mA, MODBUS RS485 signal from compatible detectors.
• Analog and digital controller
• 1 or 2 channels, up to 8 detectors
• Fully scalable
• 5” LCD back-lit graphic display
• Five programmable events per detector
•Smart keys make embedded multi-language menus simple to use
| Dimensions (w*h*d) | 265 x 266 x 96 mm (10.4 x 10.5 x 3.8 inches) |
| Ingress protection | IP55 |
| Cable entries (wall-mounted version) | 5 M16 cable glands, 4 to 8 mm2 (8 to 11 AWG) outer diameter cable 2 M20 cable glands, 6 to 12 mm2 (7 to 9 AWG) outer diameter cable |
| Display | LCD back-lit display + smart keys Display in grayscale mode in case of fault Customizable by user (display 1 to 8 channels simultaneously, fixed or scrolling, on events…) Bar graph with alarm threshold |
| Visual indicators | 7 LEDs per line for Detector status 1 common LED for Fault condition 1 common LED for Power condition |
| Buttons | 5 smart keys 1 audible alarm accept/reset button |
| Operating use | |
| Operating temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature | -20°C to +50°C (-4°F to +122°F) |
| Humidity | 5 to 95% RH |
| Power input | 100-240Vac 50-60Hz (35W) or 22-28Vdc (92W |
| Measurement lines | |
| Digital lines | 2 maximum RS-485 communication, proprietary protocol, 9600 Baud 2 twisted shielded-pair cable |
| Analog channels | 2 maximum (4-20mA or Wheatstone Bridge) 0-23mA analog signal input (4 to 20mA reserved for measurement) or OLC 10, OLC 10Twin and OLC 100 flammable gas detectors (Wheatstone bridge type) 120 Ohm load resistance 2 or 3 core shielded cable depending on detector |
| Maximum current output per line | 0.42A (@ 50°C) to 1A (@ 30°C) with internal AC power or 1.5A with external DC power |
| Maximum current output for the 2 lines | 0.42A (@ 50°C) to 1A (@ 30°C) with internal AC power or 2×1.5A with external DC power |
