Insertion Type Electromagnetic Flow Meter

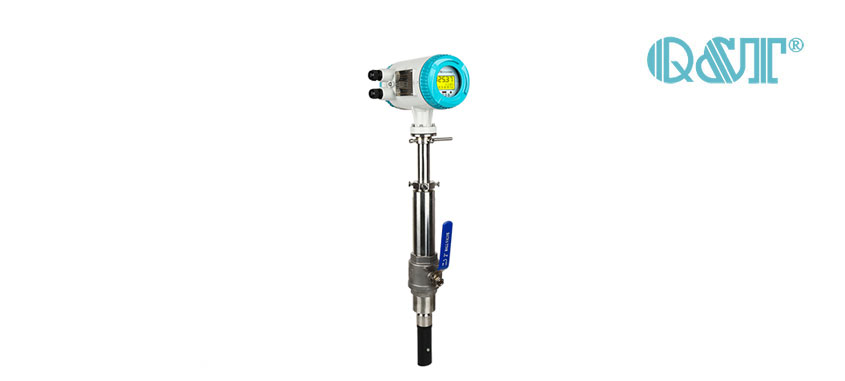

Insertion type electromagnetic flow meter is a type of electromagnetic flow meter has been used throughout industries for more than 50years. Insertion type electromagnetic flow meter comprise an electromagnetic sensing probe in ABS or Polypropylene mounted on the end of a support rod. Q&T is a company that design and manufacture flowmeters with more than 15 years of experience. One piece Q&T insertion type electromagnetic flow meter can be used for pipe sizes between DN100mm and DN3000mm. It is an economic option for large pipeline applications. With hot-tap structure, it can achieve online installation easily.

Insertion Type Electromagnetic Flow Meter Advantages and Disadvantages
The main advantages of using electromagnetic flow meter is that it is with no moving parts, no pressure loss and require very less maintenance.
Insertion type electromagnetic flow meter provide more economical option for large pipelines flow measurement, while preserving the advantages of common type magnetic flow meter. Q&T insertion electromagnetic flow meter with simple structure and no moving parts. It is totally independent from the pressure, temperature and mechanical vibrations, density, viscosity etc. No scheduled maintenance required. It can achieve hot-tapping online installation.
Comparing with flange type electromagnetic flow meter, the limitations of insertion type electromagnetic flow meter is that it can only be used for larger sizes. It can only be used for size above DN100mm, for smaller sizes below DN100mm it is not available. The accuracy of insertion type electromagnetic flow meter is lower than flange type.

Application
Insertion type electromagnetic flow meter provide more economical option for large pipelines flow measurement, while preserving the advantages of common type magnetic flow meter.
Reliable Measurement-Q&T insertion electromagnetic flow meter with simple structure and no moving parts. It is totally independent from the pressure, temperature and mechanical vibrations, density, viscosity etc. No scheduled maintenance required.

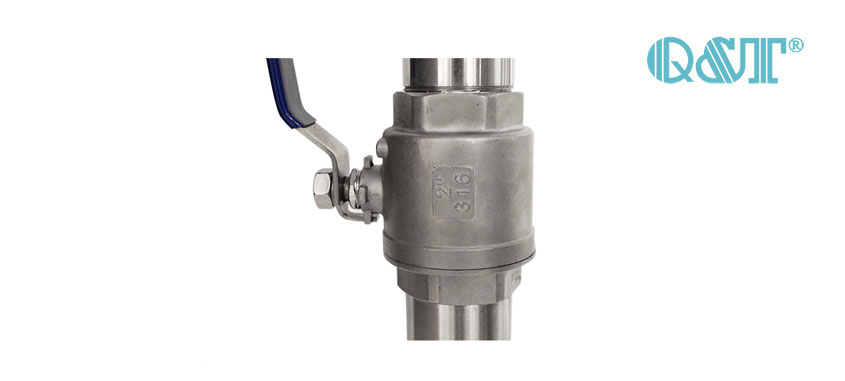

Easy Installation-Q&T insertion electromagnetic flow meter can achieve online installation (hot-tapping).
Submersible Available-Q&T insertion electromagnetic flow meter can make as remote type with IP68 protection grade and with submersible sensors for complicated conditions.
Variable Outputs-Q&T insertion electromagnetic flow meter support 4-20mA,pulse,RS485, GPRS and profibus available.
