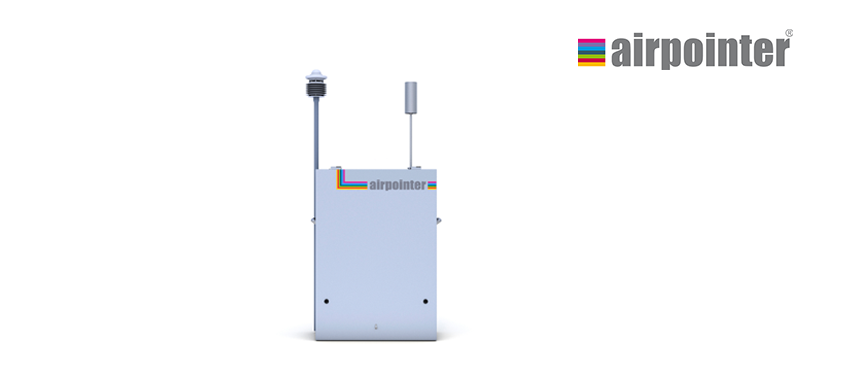

The airpointer offers a choice of analysis modules using type approved reference methods for monitoring airborne pollutants (SO2, NO2/NOX, CO, O3, and PM) classifi ed as relevant by the EU, the WHO, the US-EPA and further responsible organizations all over the world.
The airpointer is the ideal tool for monitoring combustion process gases and volatile emissions.
Features
• Airconditioned unit and additional heating element for down to -40 °C ambient
• 4 standard ambient air gases and other analytes
• 110/230 V, 50/60 Hz options available
• Rate of protection – IP54 & IP44
• Silent operation 58 dB @ 1 m distance
• Highly costumizable
Applications
• Perform redundant data logging of 2 different ambient air gases of your choice
• Optimal for fenceline monitoring
• Take measurements anywhere at any time in the world for 24 hours, 7 days a week
• Take measurements where space is precious and tight e.g. in the city
• Can be mounted on a trailer or inside a transporter for mobile applications
• Robust design for rough environments
Benefits
• Easy installation – running in less than 1 hour

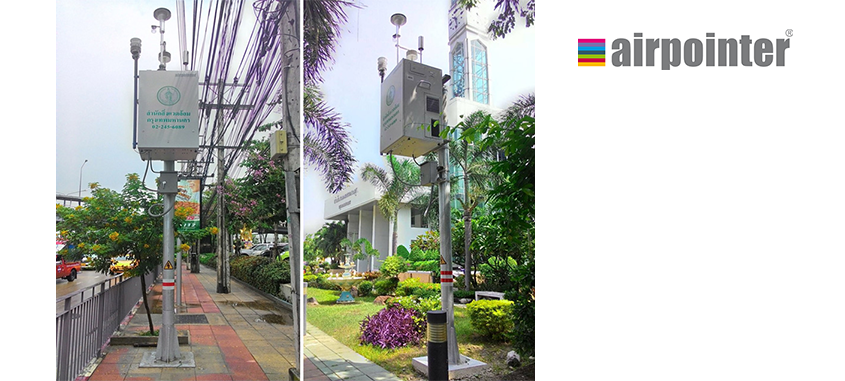

• Lightweight – can be mounted on a pole
• For use with a standard power plug (110/230 V)
• IOT – ready
• Informs the user automatically via E-mail or SMS if limits are exceeded
• Air-conditioned
| Pollutants Standard modules (4 of the following modules) | |
| Pollutant | Weight |
| NO/NO2/NOX | Weight: 12.0 kg, optional: span module |
| O3 | Weight: 5.8 kg, optional: span module |
| SO2 (H2S) | Weight: 8.5 kg span module; optional: H2S module |
| CO | Weight: 9.0 kg, optional: span module |
| PM10/PM2,5 | Type approved PM10 and PM2,5 (Met One BAM1020 or EDM 180C) |
| Weight | 73.9 kg |
| Dimensions (HxWxD) | 1120 x 920 x 400 mm. |
| Power consumption | max. 670 W |
| Flow without Dust | <3000 ccm/min |
| Construction | Well-isolated double aluminium construction |
| Standard monitoring modules on removable drawers | |
| Rugged, inconspicuous burglar-proof design | |
| Standard equipment | Internal air conditioning and temperature control |
| Cylinder lock (standard) | |
| Zero air supply | |
| Operating temperature | -20 °C to +42 °C(optional heating for down to -40 °C) (+50°C for HC) |
EcomSmart 2 is Ecomesure’s latest generation of ambient air quality measuring monitors.
EcomLite 2 is then ideal for continuously measuring indoor air quality, Fine particles concentrations: PM1, PM2.5, PM4, PM10 Gases: CO2, CO, VOC, NO2. and Noise and brightness, Environmental parameters
EcomZen to monitor the key pollutants indoors: CO2, VOC, CO, NO2, O3, NO, SO2, H2S, PM1/2.5/10 (and others), temperature, relative humidity and pressure
Installed on the roof of all types of vehicles, EcomTrek measures concentrations of air pollutants – including NO2, PM1, PM2.5, PM10, O3, NH3, VOC, CO, NO, SO2, H2S – as well as temperature, pressure and humidity.
