Sensors for measuring the surface temperature even in severe environments

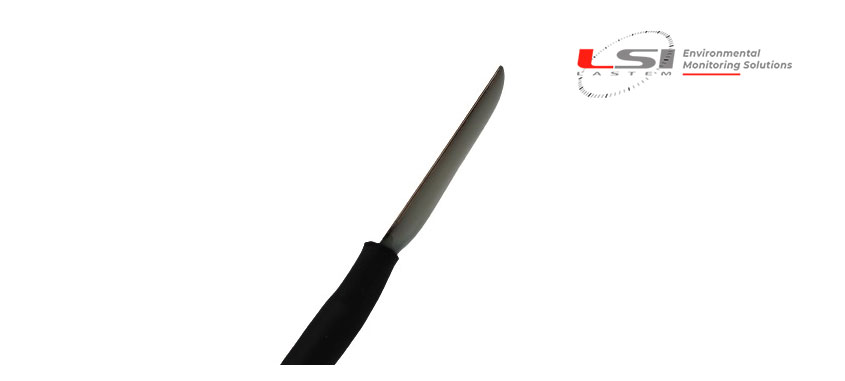

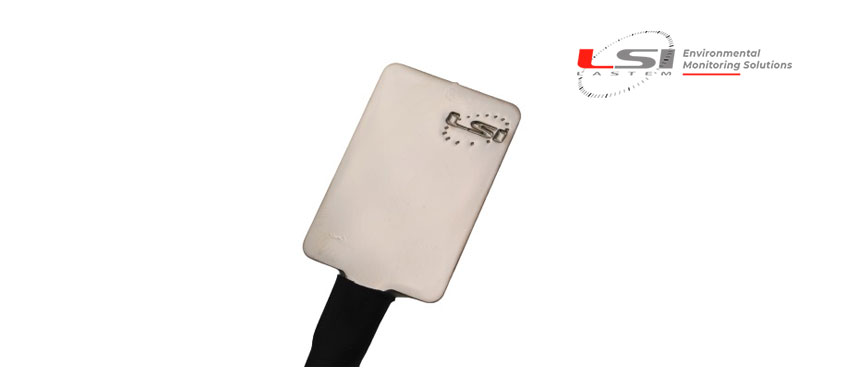

Plate-made sensor for surface temperature measurements. Its compact dimensions facilitate installation even in small spaces. It can be easily fixed using sylicon, adhesive band or thermoconductive paste.
• Robust sensor for outdoor application even in severe environmental conditions;
• 4 wires Pt100 technology for long distance cable connections;
• Ideal for PV module surface temperature measurements;
• Pt100 1/3 DIN B Class AA sensitive element for outstanding accuracy (0.15°C);
• Flat cable for cabling in narrow path;
• Accessories for 4-20 mA and RS485 signal output;
• Internal ISO17025 accreditated calibration laboratory
| PN | DLE124A | DLE124A.1 | EST124 |
| Connector | Free wires (4-wire) | Male connector for DWA5nn cables |
Mini-Din connector |
| Cable | L=20 m – Ø 5 mm | L=20 m – Ø 5 mm | L=10 m flat |
| Cable type | External polyurethane covering – Ø 6 mm |
External polyurethane covering – Ø 6 mm |
Flat ribbon cable AWG28 |
| Use | Indoor and outdoor | Indoor and outdoor | Indoor |
| Data logger compatibility |
M-Log (ELO008) R-Log (ELR515) E-Log, A-Log |
Using DWA5nn extension cable: M-Log (ELO008) R-Log (ELR515) E-Log, A-Log |
M-Log (ELO009) R-Log (ELR510.1) |
