LAR’s QuickTOCeffluent is the ultimate online TOC analyzer for the determination of total organic carbon (TOC) for waste water treatment plants effluents. Products by Brand LAR, Germany.
QuickTOCeffluent
Features & Benefits
• Measurement range: 0.1 – 200 mg/l
• Response time: 2-3 min
• TC, TOC monitoring
• Easy calibration and validation (QuickCalibration)
• Highest combustion temperature (1,200°C) on the market
• Catalyst-free technique
• No filtration necessary at the effluent
• No memory effects
• Low operational and maintenance costs
• According to DIN EN 1484:1997-08, ISO 8245:1999-03 and EPA 415.1
Applications
LAR’s total organic carbon analyzer is suitable for a variety of applications and types of water:
• Municipal WWTP outlet
• Industrial WWTP outlet
• Process water
| Measurement and Sample Preparation | |
| Type of measurement: thermal combustion at 1,200 | |
| Measuring range | 0.1 – 200 mg/l (ppm) |
| Response time | 2-3 minutes (application dependent |
| Reproducibility | ± 2% |
| Accuracy | ± 2% |
| Connections | |
| Sample water, in | Prene tube 3.2 x 1.6mm |
| Sample water, drain | PVC tube 12 x 2mm |
| Electrical power | ~115 / 230V, 50 / 60 Hz |
| Analog output | 0/4 – 20 mA |
| Serial interface | RS 232 for remote control Malfunction alarm, life-zero |
| Status output | 4 relais contacts (programmable) |
| Remote control | via TCP/ IP protocol (internet) |
| Dimensions and Weights | |
| Cabinet | steel IP 54 |
| Option | stainless steel, IP 65, ATEX zone 1 and zone 2 |
| Dimensions | 1,060 x 600 x 520 mm (H x W x D) |
| Weight | approx. 115 kg (254 lb) |

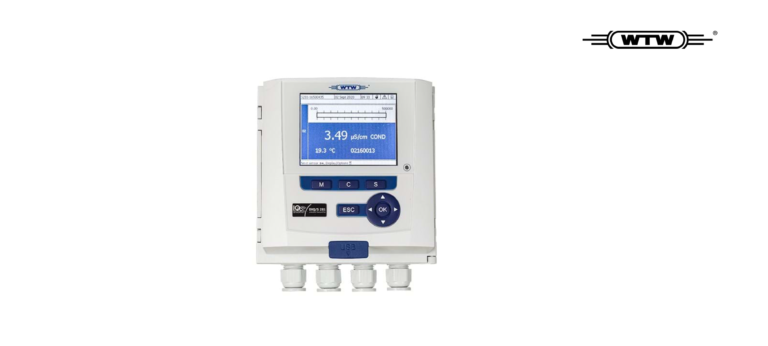

Universal monitor DIQ/S 281-CR2. The new system 281 – the digital and cost-efficient single parameter measuring point with proven IQ Sensor Net technology and IQ sensors for the standard parameters.
UV 700 IQ NOx: Low-cost probe with integrated ultrasonic cleaning for the maintenance-free and reagent-free measurement of nitrate

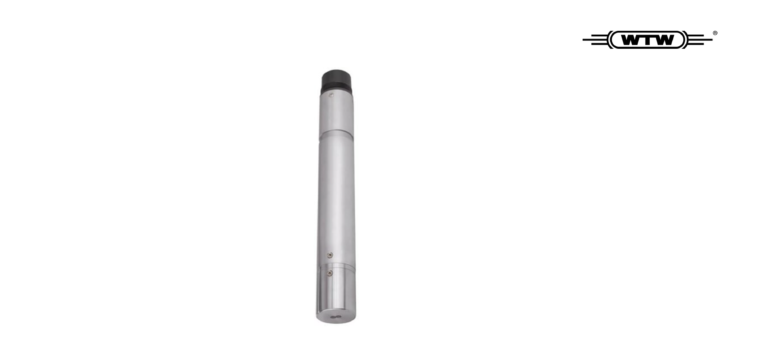

ViSolid®: Optical sensors for the in-situ use to measure suspended solids via scattered light and direct back-scattering with ultrasonic cleaning system
