• Professional grade weather stations
• Measurement of the seven typical quantities for meteorological applications
• High-quality sensors designed according to WMO (World Meteorological Organization) directives
• Operational limits suitable for all climatic situations
• Extremely low power consumption

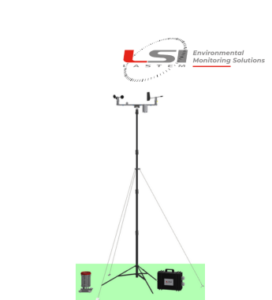

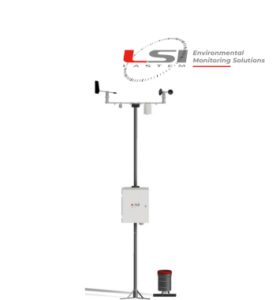

• Fixed and portable configurations
• Wide range of data communication solutions
• Suitable for environmental or industrial applications

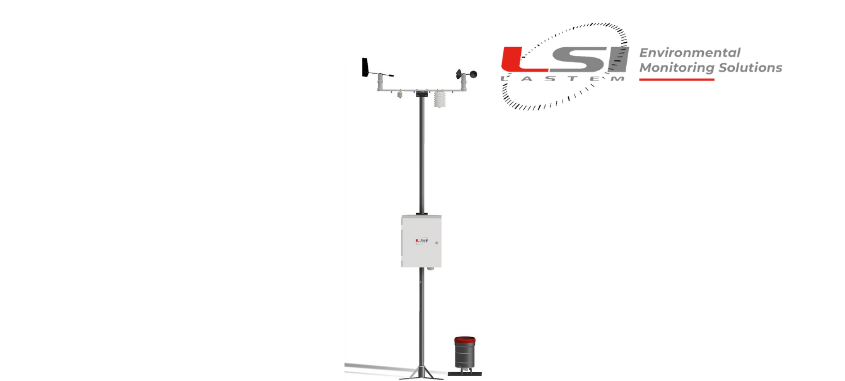

KME weather stations are professional solutions for obtaining the
typical weather parameters such as air temperature and relative
humidity, wind speed and direction, atmospheric pressure, solar
radiation and rainfall. The station consists of a basic kit which includes a selection of sensors, a 12-input datalogger and a software.
• Professional solution according to WMO requirements
LSI LASTEM’s weather stations are specifically designed to meet
professional requirements. Even in extreme environmental situations, hey ensure long-term accurate measurements. Sensors
specifications comply with WMO standards (World Meteorological Organization).
• KME packages
Three versions of the KME weather stations are available. All of them include:
• Data logger and 3DOM software
• Sensors (see below table)
• Mounting accessories
• Cables for each sensor
• E-Log (ELO3305) data logger is included in each KME package. According to the KME version, there are still free inputs available for additional sensors not included in the package.
| Parameters |
Sensors type |
PN |
KME101 |
KME102 |
KME103 |
| Air Temperature & RH% |
Thermo-hygrometer with
radiant screen |
DMA672.1
DYA233 |
X |
X |
X |
| Wind speed & Direction |
Cup anemometer
Vane anemometer |
DNA202.1
DNA212.1 |
X |
X |
X |
| Absolute Pressure |
Piezometric |
DQA240.1 |
X |
X |
X |
| Rain |
Tipping bucket rain gauge |
DQA230A.1 |
|
X |
X |
| Solar radiation |
2nd Class ISO9060 pyranometer |
DPA053A |
|
|
X |
| N° of free inputs (analogue) |
|
|
4 |
4 |
3 |
| N° of free inputs (digital) |
|
|
3 |
2 |
2 |
| N° of free inputs (RS232) |
|
|
1 |
1 |
1 |
