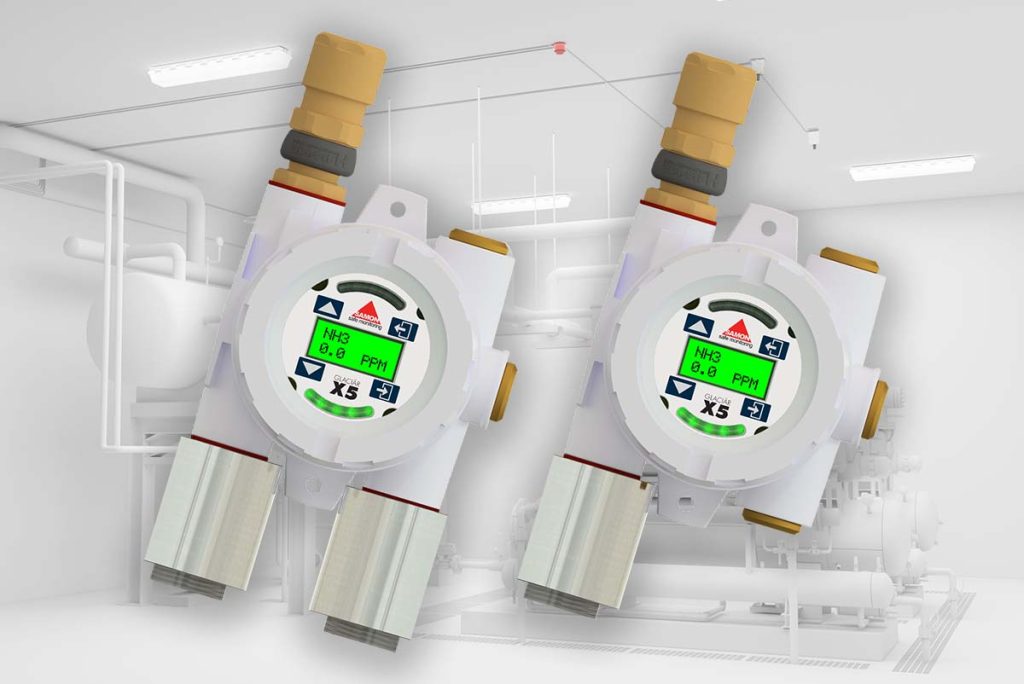

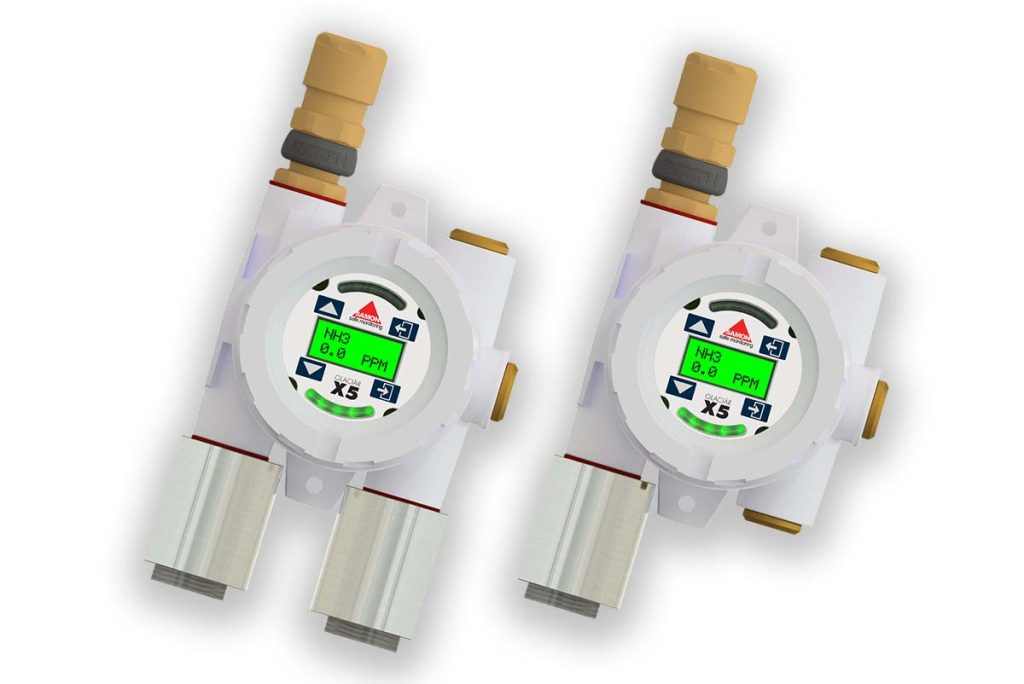

Engineered to work in the most demanding refrigeration environments, the GLACIÄR X5 stands out with its cutting-edge single and dual-sensor technology. It delivers unmatched accuracy in detecting industrial refrigerants, and features a revolutionary NH3 sensor, designed to last an impressive five years, even amidst constant background NH3 levels.
Robust and heavy-duty, the GLACIÄR X5 is your trusted partner for sustained industrial safety and efficiency. Elevate your safety standards with GLACIÄR X5 – where innovation meets endurance.
SENSOR SELECTION

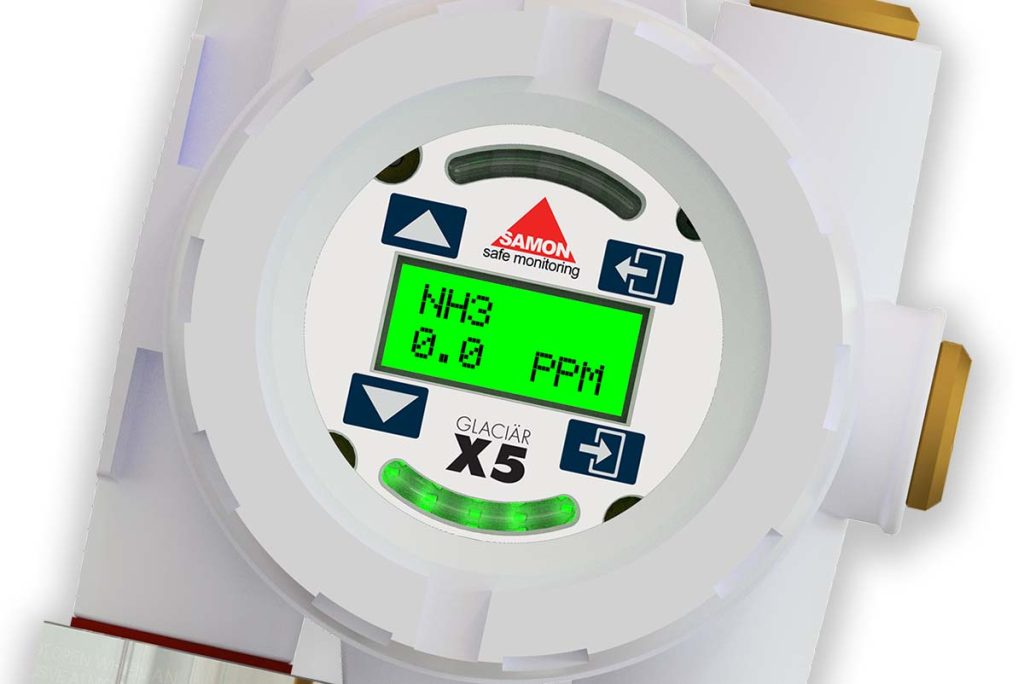

QUICK & EASY CONFIGURATION & MAINTENANCE
MULTIPLE OUTPUTS
EASY INSTALLATION
| Power | 18 to 30V DC |
| Electrical Outputs |
2 x independent 4-20mA outputs auto ranged to suit fitted detector(s) 1 x Single Pole Fault Relay 2 x SPCO Alarm Relays Relays 4A at 24V DC Non Inductive Aux Power Connection 0.5A Max |
| JB Housing Material |
Junction Box, Copper Free Aluminium Alloy Epoxy Coated Option for Marine Paint Finishes |
| Sensor Housing Material | Sensor, Stainless Steel 316 S16 |
| Explosion Protection | Junction Box, EEx d IIC T6 I I2 D G |
|
Housing Dimensions (mm) |
See Drawing Below |
| Cable Entry | 5 x M20 x 1.5 (See Drawing) |
| Temperature | -20°C to +55°C / -4°F to 131°F |
| Humidity | 20-90% RH Non-Condensing |
| Sealing | IP66 |
| Mounting | Wall Mount |
| Weight | 1.1 kg / 38.8 oz (Plus Fitted Detectors) |
Award-winning, flagship, refrigerant gas detector.
Easy configuration with app. No tools needed.
