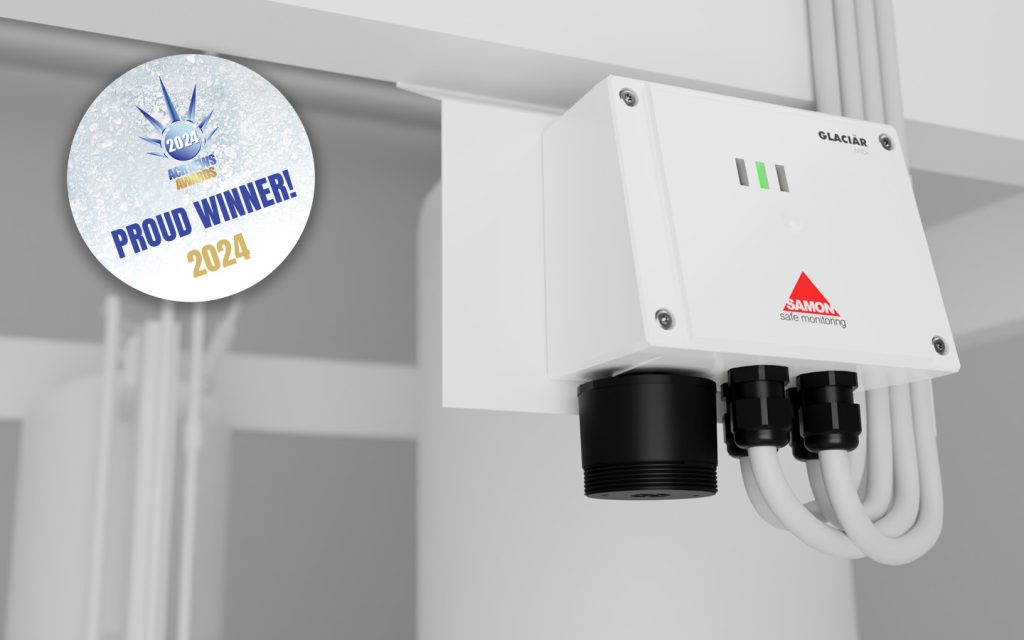

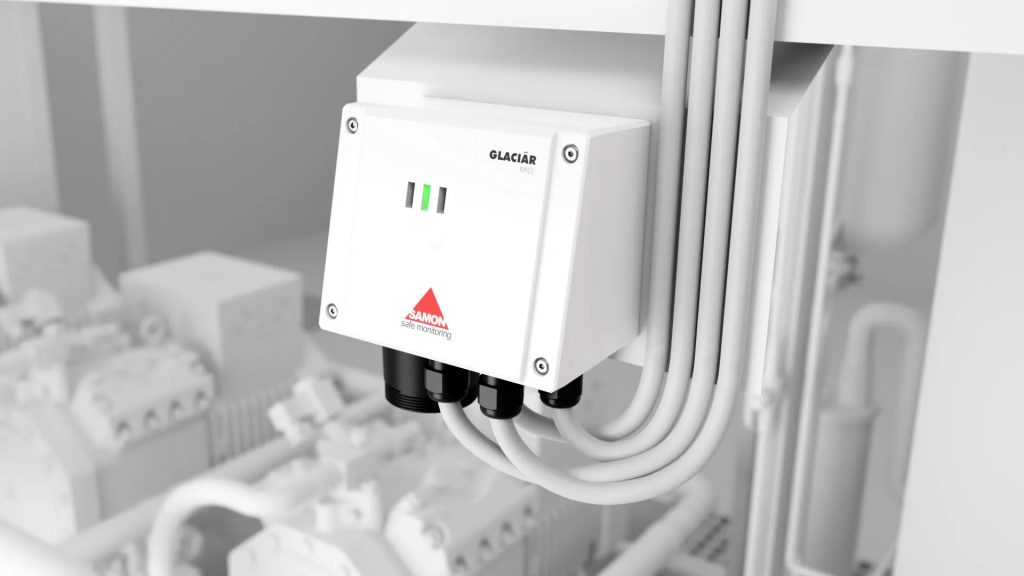

GLACIÄR MIDI

GLACIÄR MIDI detects leaks of refrigerant gases that are harmful to the
environment we live in, and harmful to the environments that people work in.
By mitigating these leaks, our planet is protected against greenhouse gas
emissions, our colleagues stay safe and healthy, and property is protected against the risks of system failure and explosion.

SENSOR SELECTION

• All sensor types compatible with the GLACIÄR MIDI detector
  platform
• HFC/HFO blends detected via just two broad-band sensor variants
• CO2 detection via infra-red sensor
• Electrochemical sensors for NH3 detection
• R290 (propane) & hydrocarbon sensor

EASY INSTALLATION

• Comes ready to install with standard configuration
• Multiple cable glands located for easy access to power connections & output terminals
• Pluggable screw terminals for simple installation on site
• IP67-rated enclosure & -40°C – + 50°C operating range suitable for all
  refrigeration environments

MULTIPLE CONFIGURABLE OUTPUTS

• Alarm indication via relay contacts for high- and low-alarm levels
• Interface to control systems via
• Modbus RTU over RS485 & selectable analogue output range
• Visual health-check via high-intensity status LEDs
• Selectable dedicated fault relay

INTELLIGENT SERVICE & MAINTENANCE

• Service counter tells you when service is needed

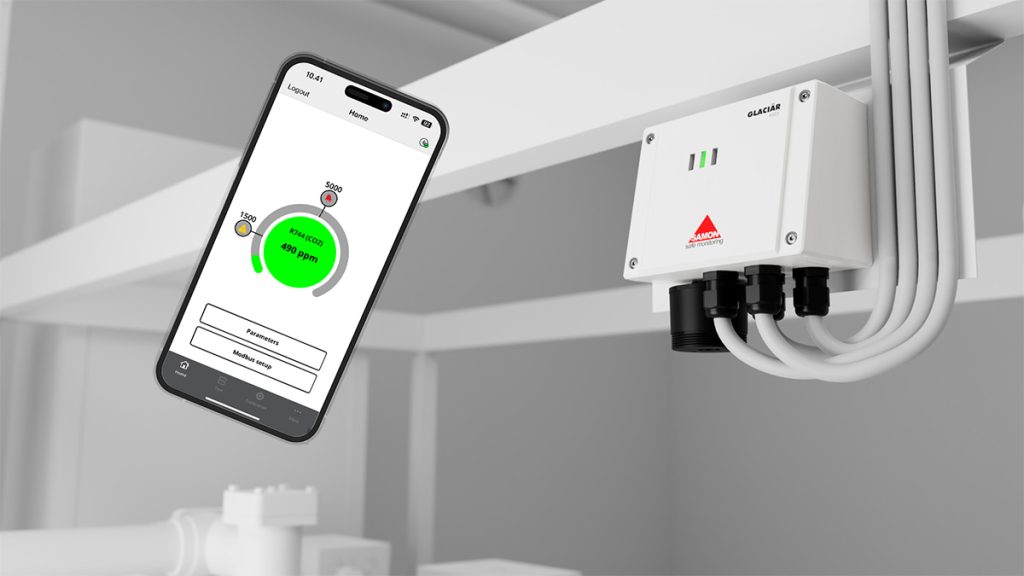

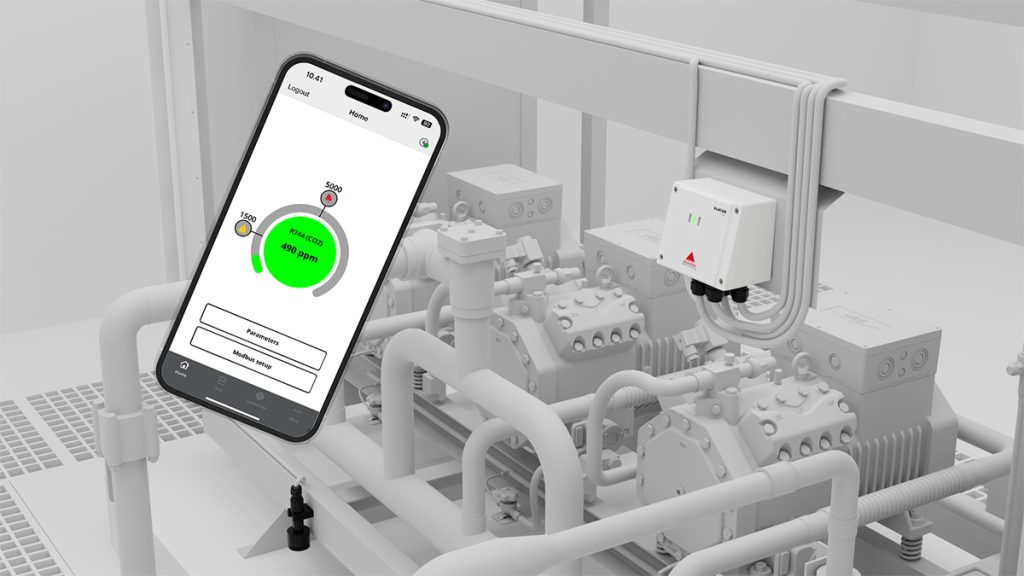

• Bluetooth® connectivity to app for configuration & calibration (Android™ & iOS)
• Analogue configuration via service-wheel & magnetic switch
• Pre-calibrated sensor module replacements
• Sensor lifetime counter
