Coolvacuum offers a wide range of accessories,adaptable to the requirements of our customers, to achieve the optimal freeze-drying process for each application
Our laboratory freeze dryers are specially designed to meet the freeze-drying requirements of the most demanding industrial R&D departments as well as laboratories and universities.
Coolvacuum’s Infi nity TechnologyTM allows maintaining infi nite freeze-drying cycles, alternating two condensers automatically when they reach their maximum capacity. While one condenser is in use, the other one can be drained to avoid downtime.
• Condenser -55 ºC / -85 ºC.
• Hot gas defrosting system.
• Coolvacuum Trend software for batch / cycle data management.
• SCADA software to process production data acquisition in accordance with FDA 21CFR part 11.
• Remote connection.
• Vacuum control for cycle optimization.
• Chamber / condenser isolation valve.
• Organic solvent condenser.
• Gas discharge fi lter for the vacuum pump.
• Infi nite condenser for continuous freeze dryin

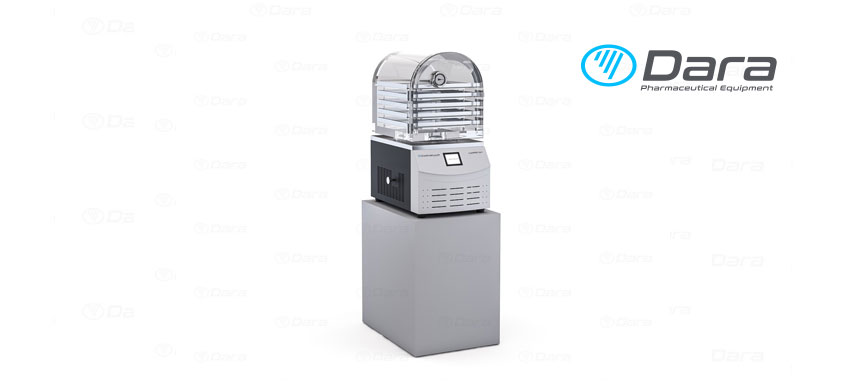

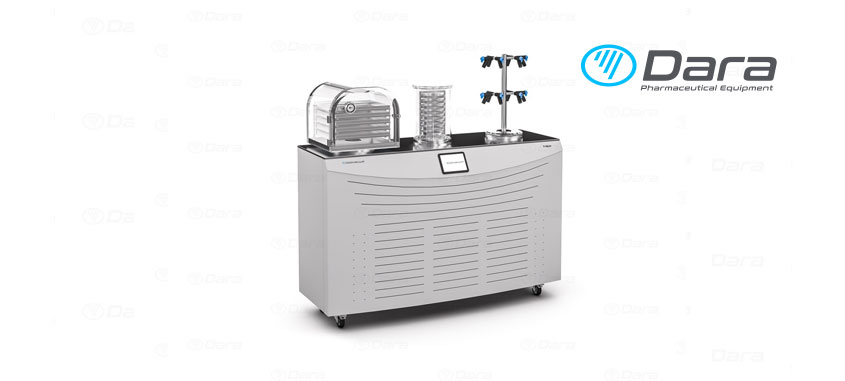

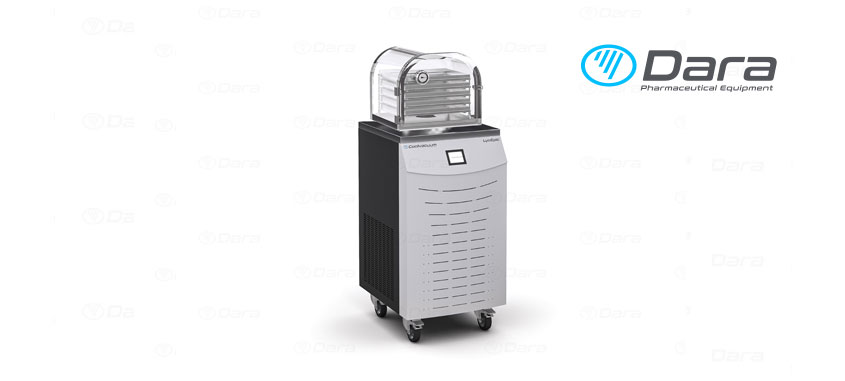

| Model | LyoMicron | LyoEpic | TriEpic | |||
| Ice condenser temperature | -55 ºC | -85 ºC | -55 ºC | -85 ºC | -55 ºC | -85 ºC |
| Overall dimensions (W x D x H) | 420 x 630 x 380 mm | 740 x 600 x 380 mm | 540 x 630 x 970 mm | 1,840 x 630 x 970 mm | ||
| Ice condenser capacity | 7 kg | 18 kg | 30 kg | |||
| Electrically heated shelves | Optional | |||||
| Vacuum pump flow | 6m3/h | 12m3/h | 36m3/h | |||
| Weight | 65 kg | 85 kg | 95 kg | 120 kg | 140 kg | 150 kg |
| Ice condenser capacity / 24h | 5 kg | 8 kg | 16 kg | |||
Highest safety and quality standards are the basis for the production of highly effective medicinal products such as granules, inhalates and tablets.
